ASUS ROG Strix B550-I Gaming AM4 Motherboard Review

ROG Strix B550-I Gaming is ready to become your next compact gaming build

Performance Testing

Test Platform:

CPU – AMD Ryzen 9 3900X
Mobo – Asus ROG Strix B550-I Gaming
RAM – 16GB (2x8GB) HyperX Fury RGB 3200MHz C16
GPU – Nvidia RTX 2080 Founders Edition
SSD – Corsair MP600 2TB
PSU – Thermaltake Toughpower Grand RGB Gold 750W
Chassis – Open BenchTable
Cooling – Custom Liquid Loop (EKWB Velocity CPU Block, EKWB PE240 Rad, 1x DDC Pump)

All testing is performed at default settings except for enabling XMP (via D.O.C.P.) (Profile 1: 3200MHz 16-18-18-38 1.35V).

General Performance Testing

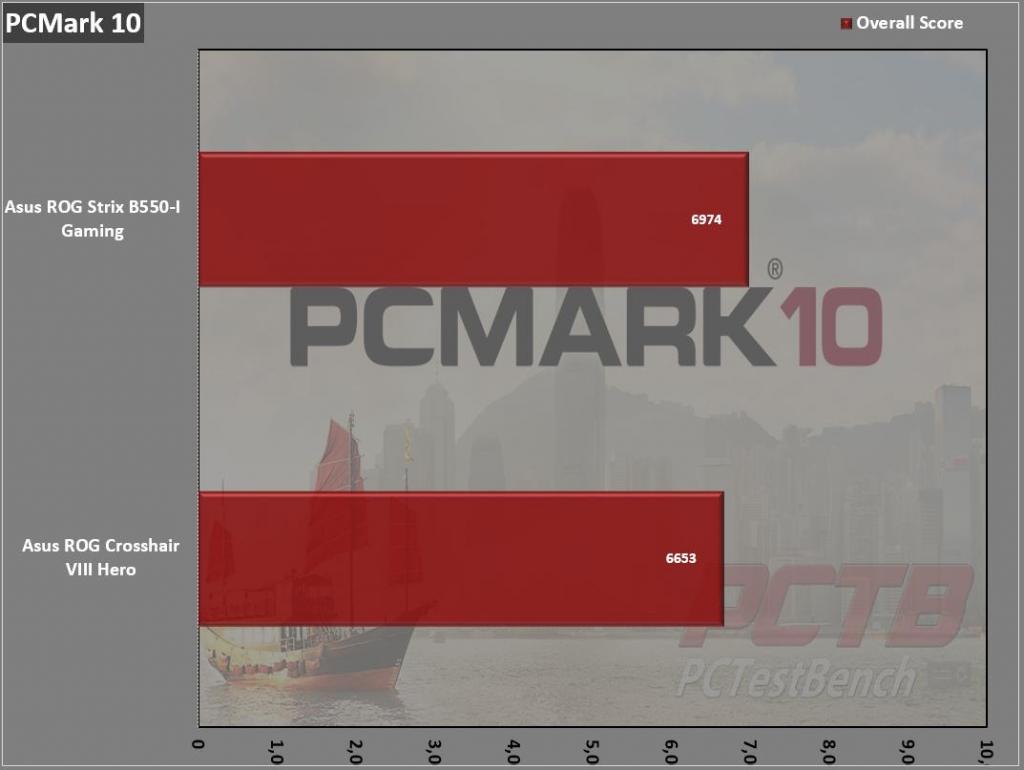

PCMark 10

PCMark 10 is the complete benchmark for the modern office. It is the ideal test for organizations that are evaluating PCs for a workforce with a range of performance needs. The tests in this benchmark cover a wide range of activities from everyday productivity tasks to demanding work with digital media content.
PCMark 10 uses a modular approach to build relevant benchmark tests around common end-user scenarios. A Test Group is a collection of workloads that share a common theme or purpose. There are four test groups in PCMark 10, we use three of them.
Essentials: covers the common, everyday ways that people use a PC. The workloads include Web Browsing, Video Conferencing, and App Start-up time.
Productivity: measures system performance with everyday office applications. This test group includes Spreadsheets and Writing workloads.
Digital Content Creation: This test group’s workload reflects the demands of working with digital content and media. The tests include Photo Editing, Video Editing, and Rendering and Visualization.

ASUS ROG Strix B550-I Gaming AM4 Motherboard Review 1

With the same configuration, the ROG Strix B550-I actually beats out the X570 equipped ROG Crosshair VIII Hero in the overall score.

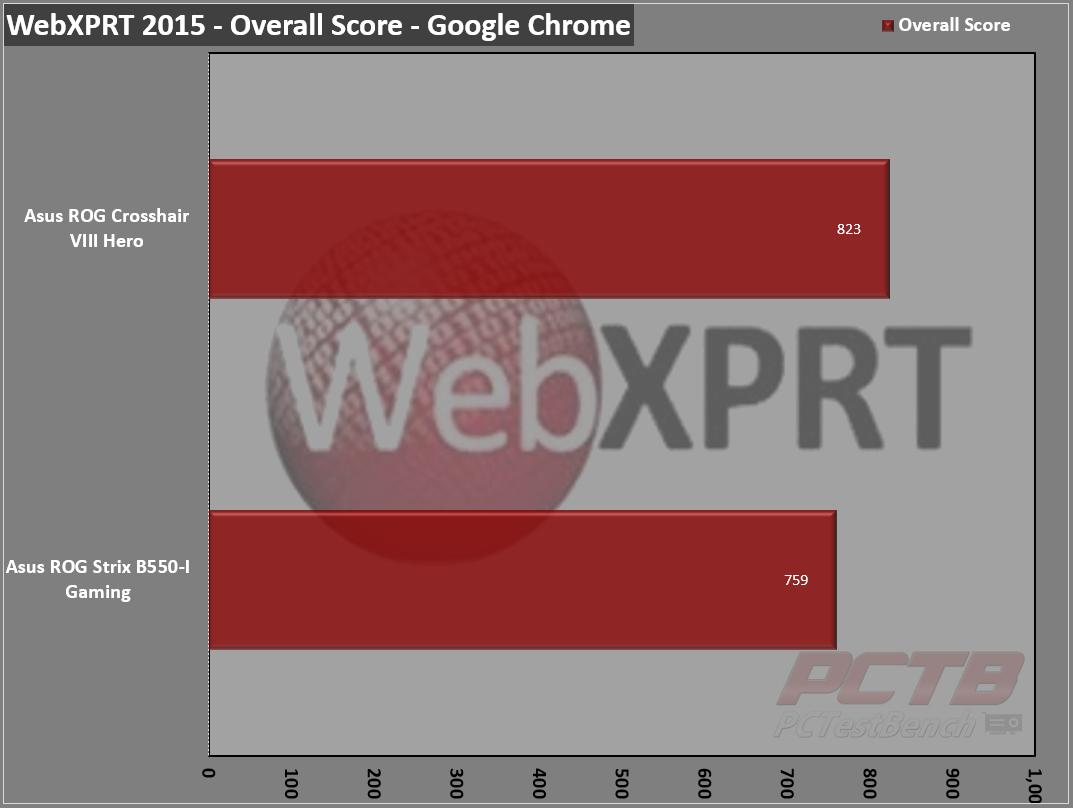

WebXPRT 2015

WebXPRT 2013 uses scenarios created to mirror the tasks you do every day to compare the performance of almost any Web-enabled device. It contains four HTML5- and JavaScript-based workloads: Photo Effects, Face Detect, Stocks Dashboard, and Offline Notes.  WebXPRT is run with the latest stable release version of Google Chrome browser, in this case, Version 61.

ASUS ROG Strix B550-I Gaming AM4 Motherboard Review 2

In our browser-based test, the Strix falls just a few points behind.



CPU Performance Testing

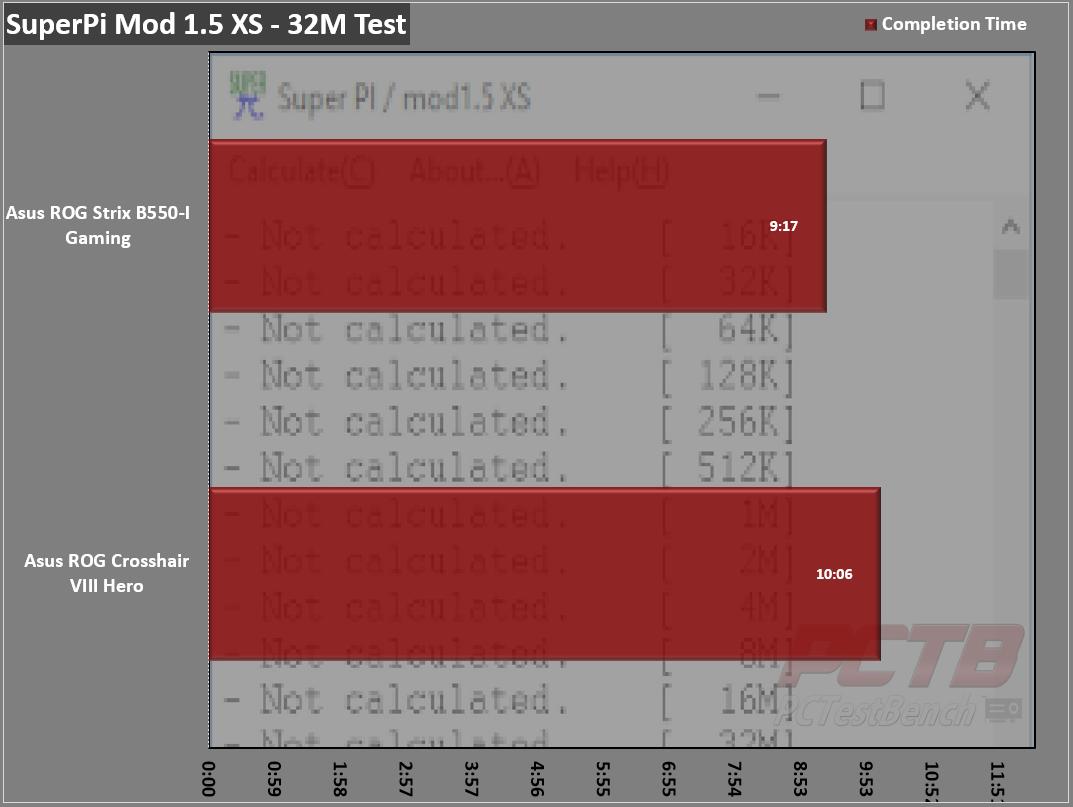

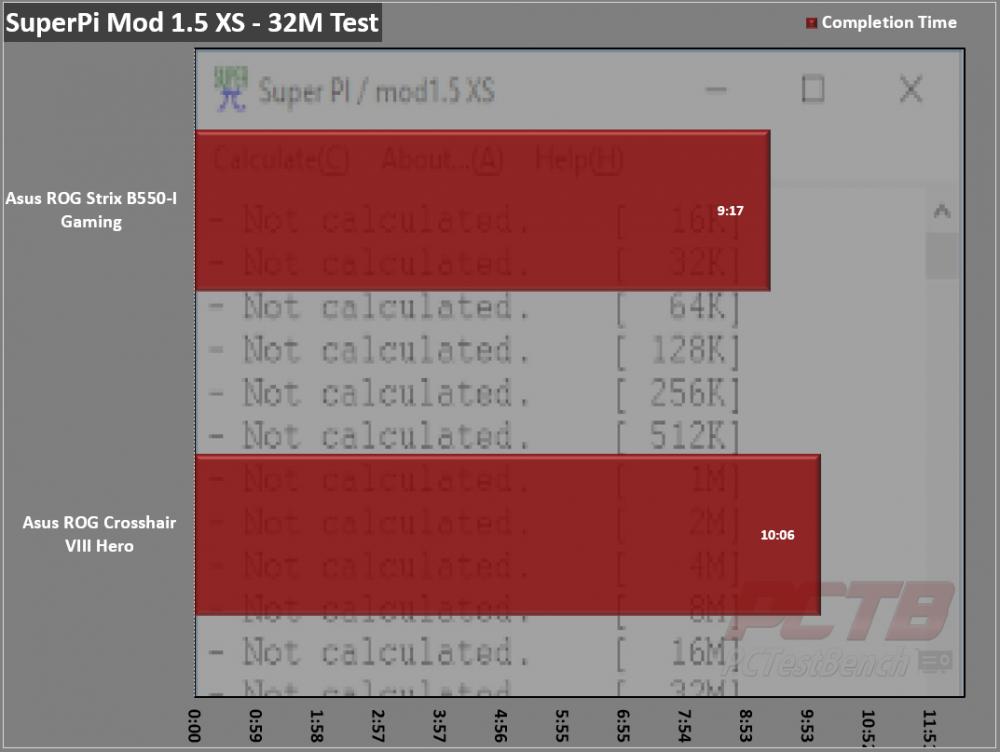

Super PI Modded 1.5

“In August 1995, the calculation of pi up to 4,294,960,000 decimal digits was succeeded by using a supercomputer at the University of Tokyo. The program was written by D.Takahashi in collaboration with Dr.Y.Kanada at the computer center. This record should be the current world record. (Details are shown in the windows help.) This record-breaking program was ported to personal computer environments such as Windows NT and Windows 95. In order to calculate 33.55 million digits, it takes within 3 days with a Pentium 90 MHz, 40 MB main memory, and 340 MB available storage.”

ASUS ROG Strix B550-I Gaming AM4 Motherboard Review 3

The Strix board shaves almost 50 seconds off the test.

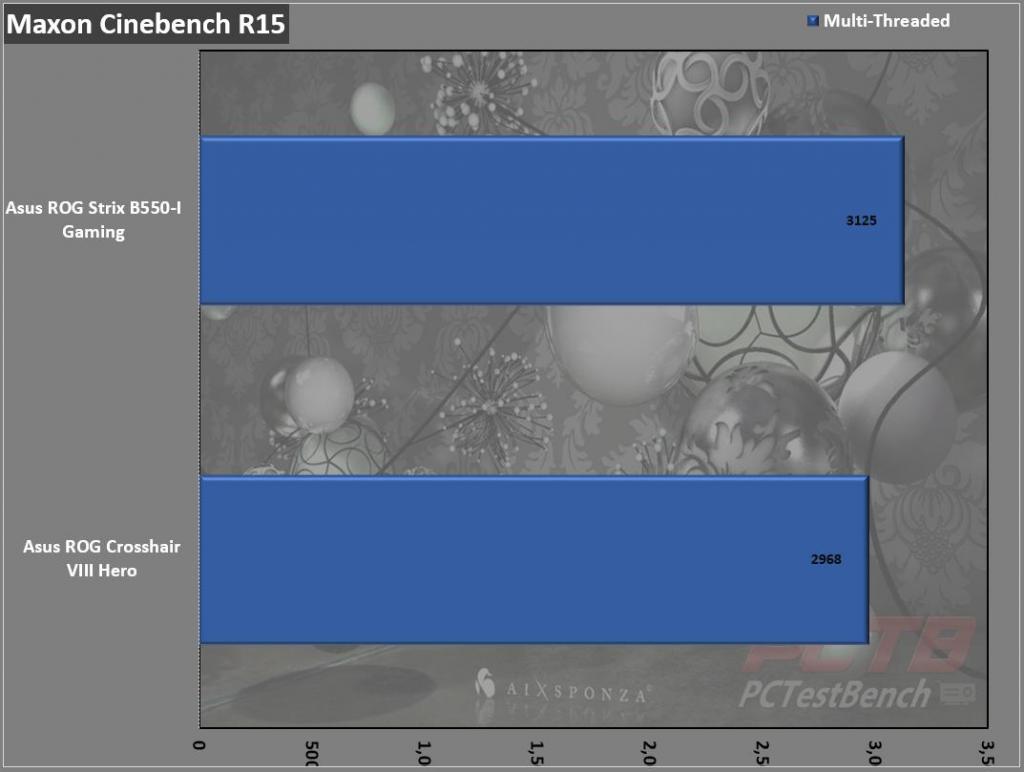

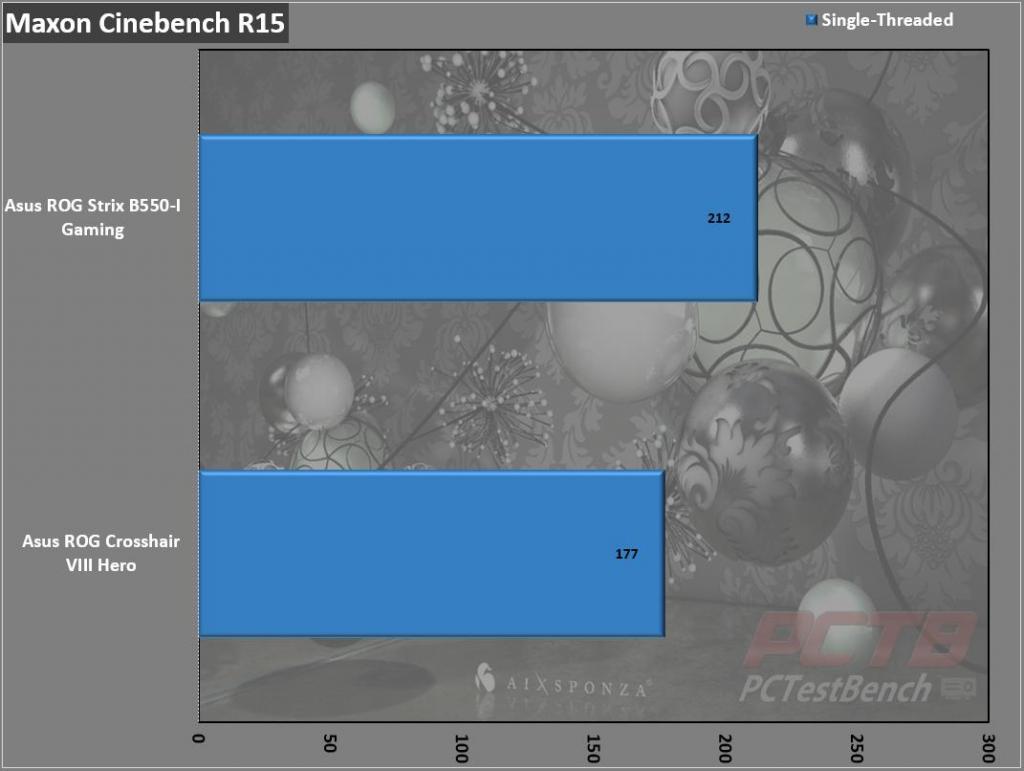

CINEBENCH R15

“CINEBENCH is a real-world cross-platform test suite that evaluates your computer’s performance capabilities. CINEBENCH is based on MAXON’s award-winning animation software CINEMA 4D, which is used extensively by studios and production houses worldwide for 3D content creation. MAXON software has been used in blockbuster movies such as Iron Man 3, Oblivion, Life of Pi or Prometheus, and much more.

CINEBENCH is the perfect tool to compare CPU and graphics performance across various systems and platforms (Windows and OS X). And best of all: It’s completely free.”



Now, some time has passed since the Crosshair Hero came out, and drivers have likely improved, but the Strix B550-I holds a noticeable lead here in both single and multi-threaded performance.

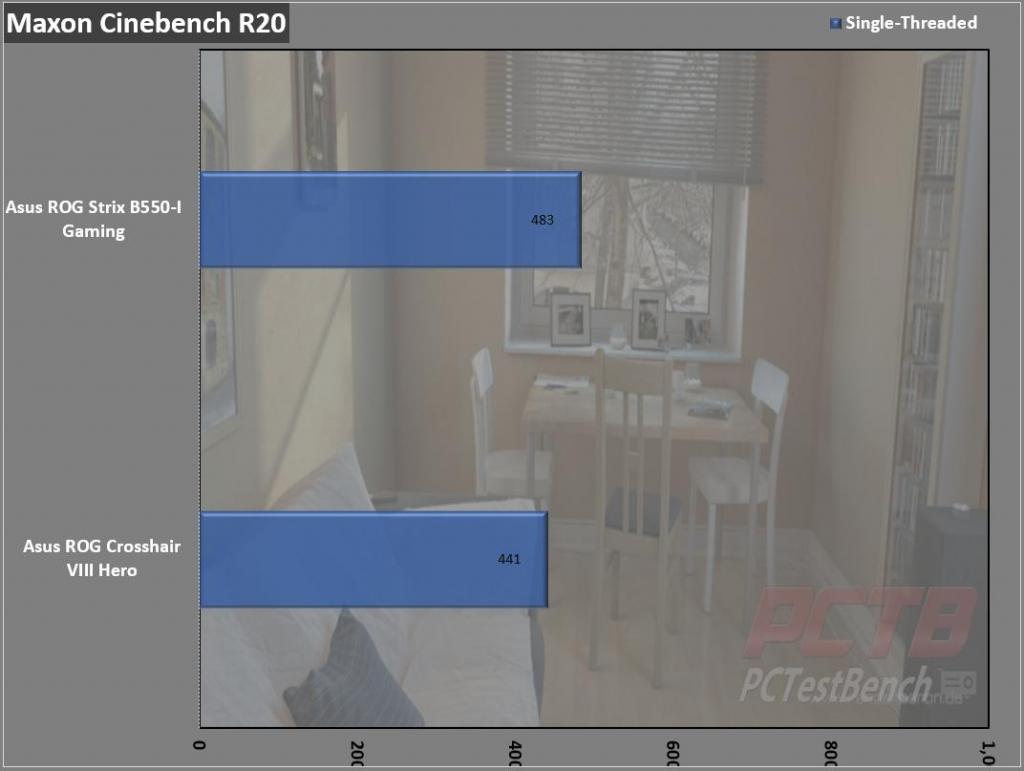

CINEBENCH R20

Cinebench is a real-world cross-platform test suite that evaluates your computer’s hardware capabilities. Improvements to Cinebench Release 20 reflect the overall advancements to CPU and rendering technology in recent years, providing a more accurate measurement of Cinema 4D’s ability to take advantage of multiple CPU cores and modern processor features available to the average user. Best of all: It’s free.

The story is exactly the same with the newer Cinebench R20.

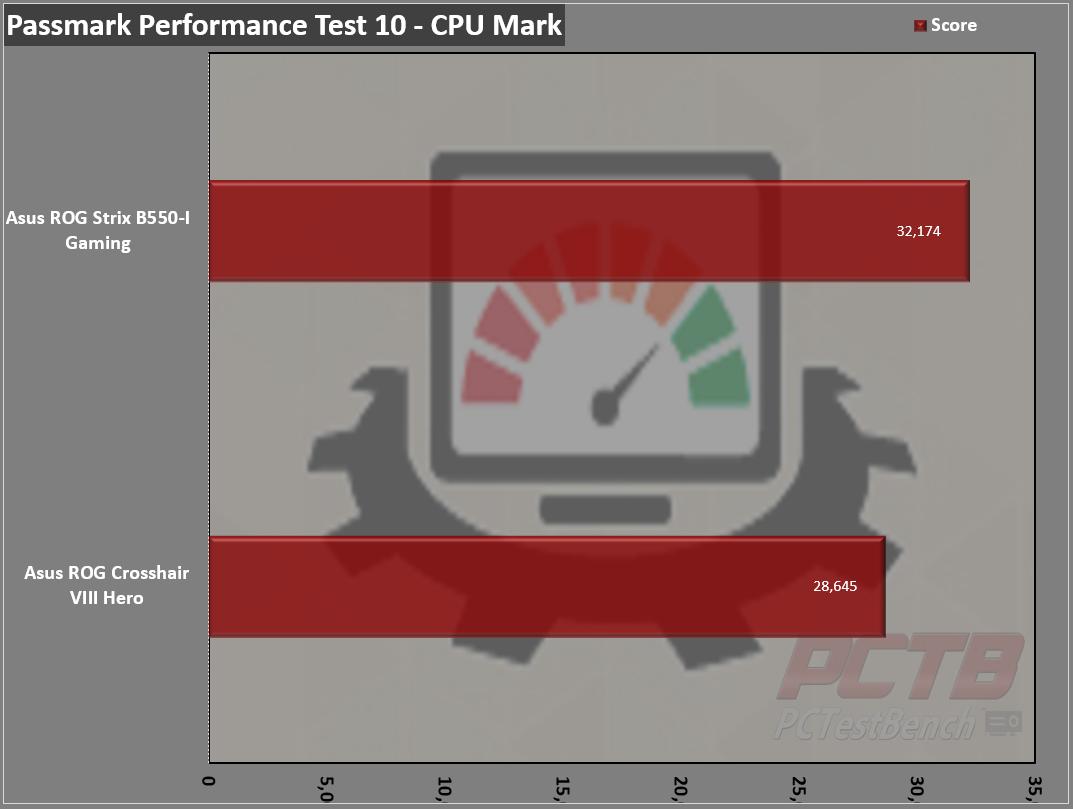

Passmark Performance Test – CPU Mark

“Fast, easy to use, PC speed testing, and benchmarking. PassMark Performance Test ™ allows you to objectively benchmark a PC using a variety of different speed tests and compare the results to other computers.”

ASUS ROG Strix B550-I Gaming AM4 Motherboard Review 8

Passmark shows a very wide gap in the overall CPU segment of its testing.

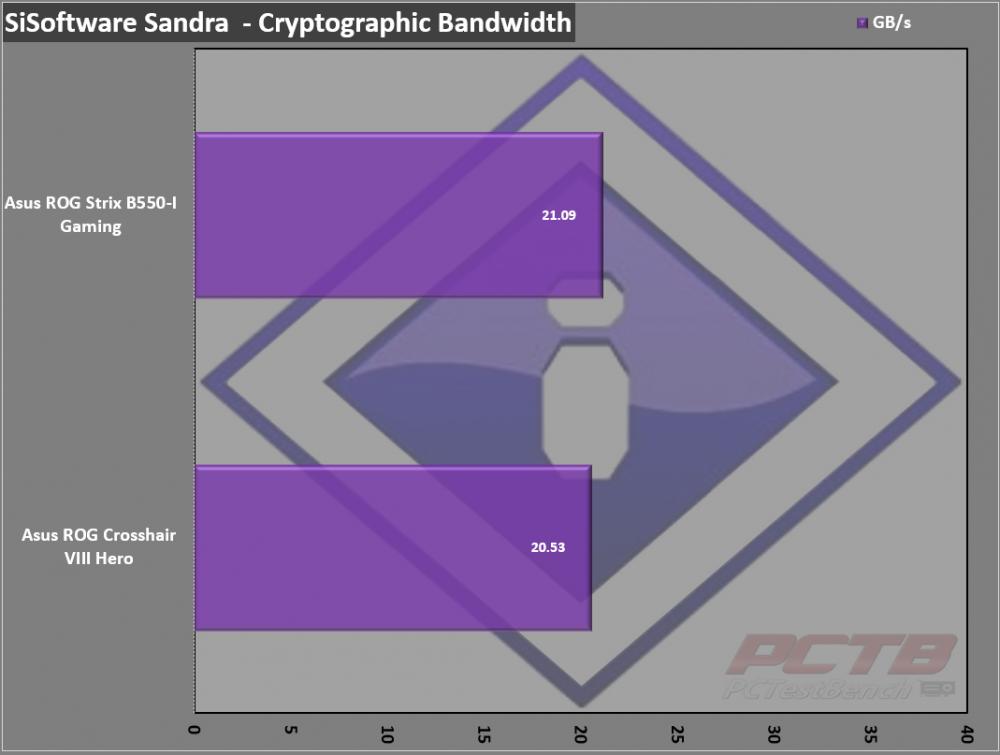

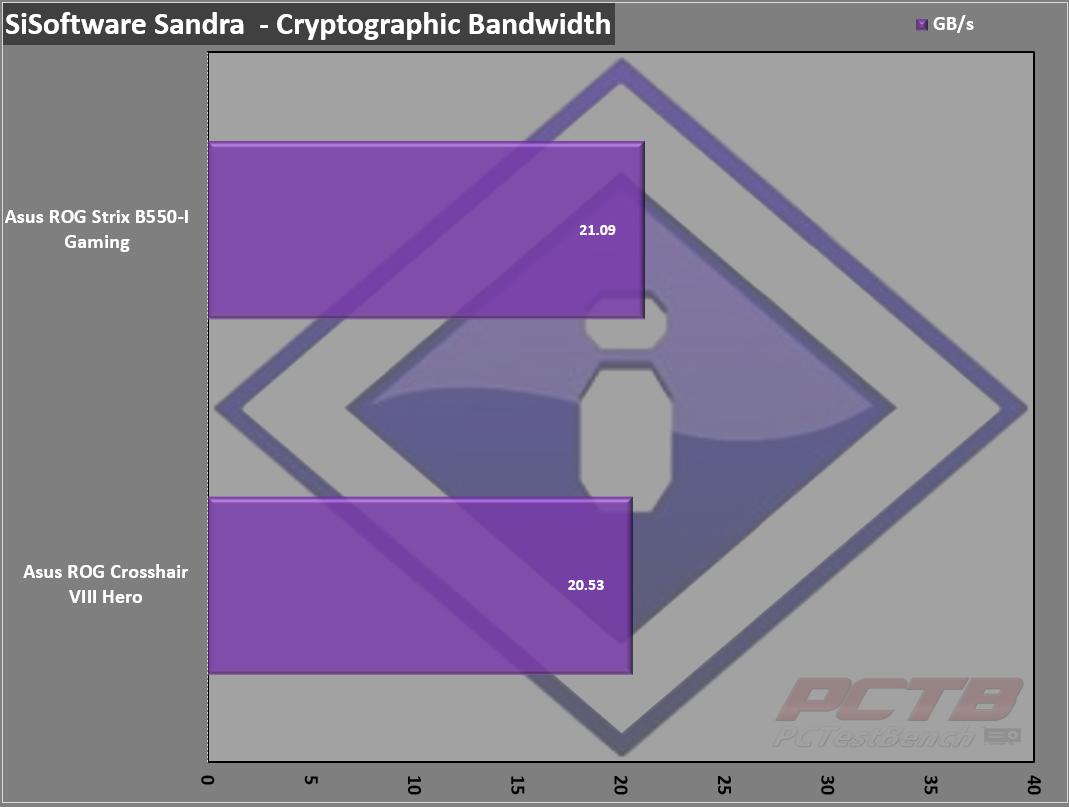

SiSoft Sandra – Cryptographic Bandwidth

“SiSoftware Sandra provides a robust package of diagnostic tools for testing your system and teasing out its problems–or potential headaches.”

ASUS ROG Strix B550-I Gaming AM4 Motherboard Review 9

In SiSoft’s Cryptographic CPU Bandwidth test, the gap is narrow, but the Strix B550-I still retains its podium position.

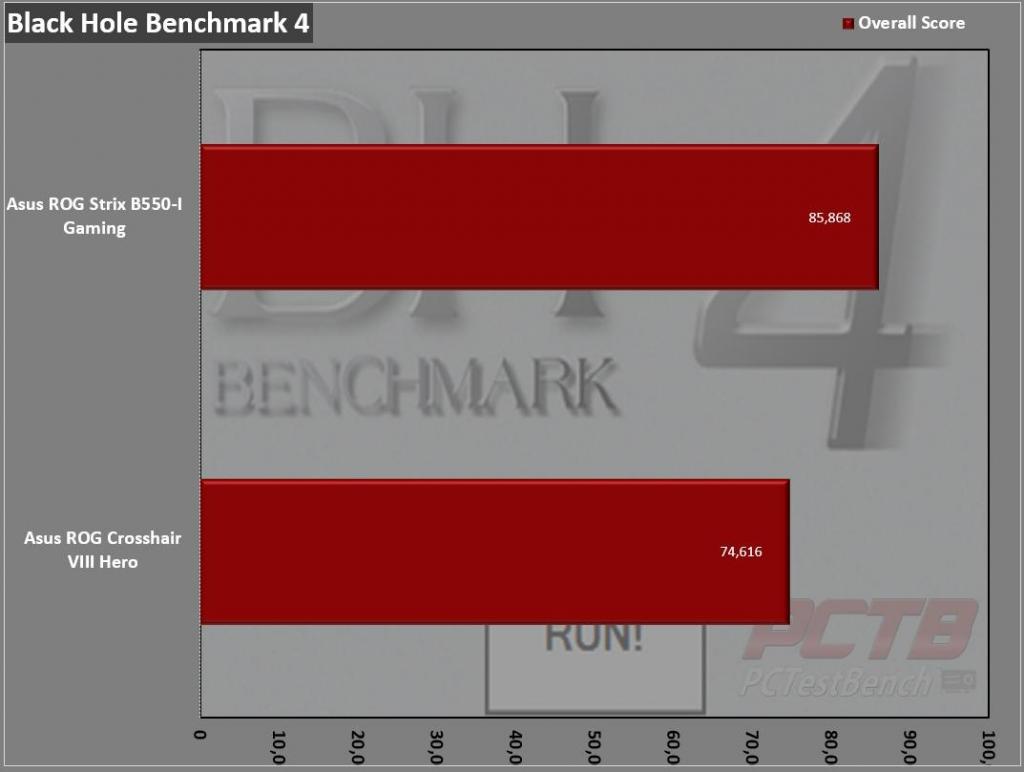

Black Hole 4.2

Let the beast run and benchmark your system in three different tests (Multithreaded, Single-threaded & 4-Threaded) that will test your CPU to the very limit, and score you among hundreds of other systems that have tested.

Multithreaded will test your CPU’s efficiency of running more than one thread without major system lag. The higher you score on this one, the more threads your CPU can handle with a comfortable speed. High multithreaded scores generally mean you can render things faster.

4-Threaded tests your CPU’s performance in games since most games currently run on 4 threads.

Single-threaded evaluates how fast the CPU can handle a single, dedicated thread for processing.

ASUS ROG Strix B550-I Gaming AM4 Motherboard Review 10

Black Hole Benchmark again lends the Strix B550-I another victory.

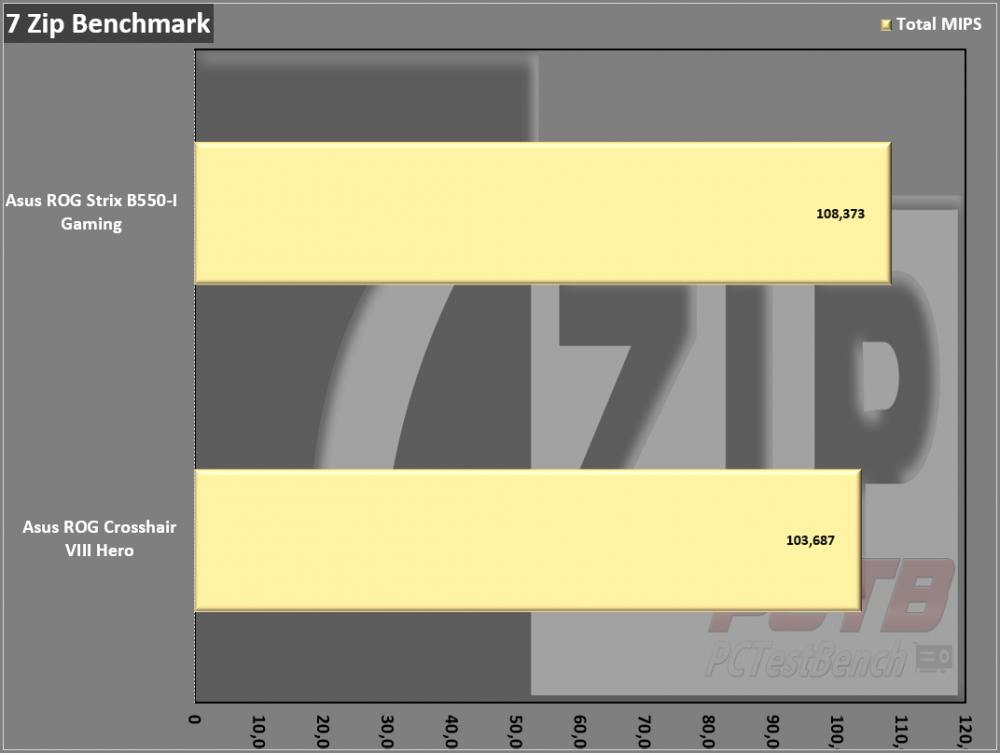

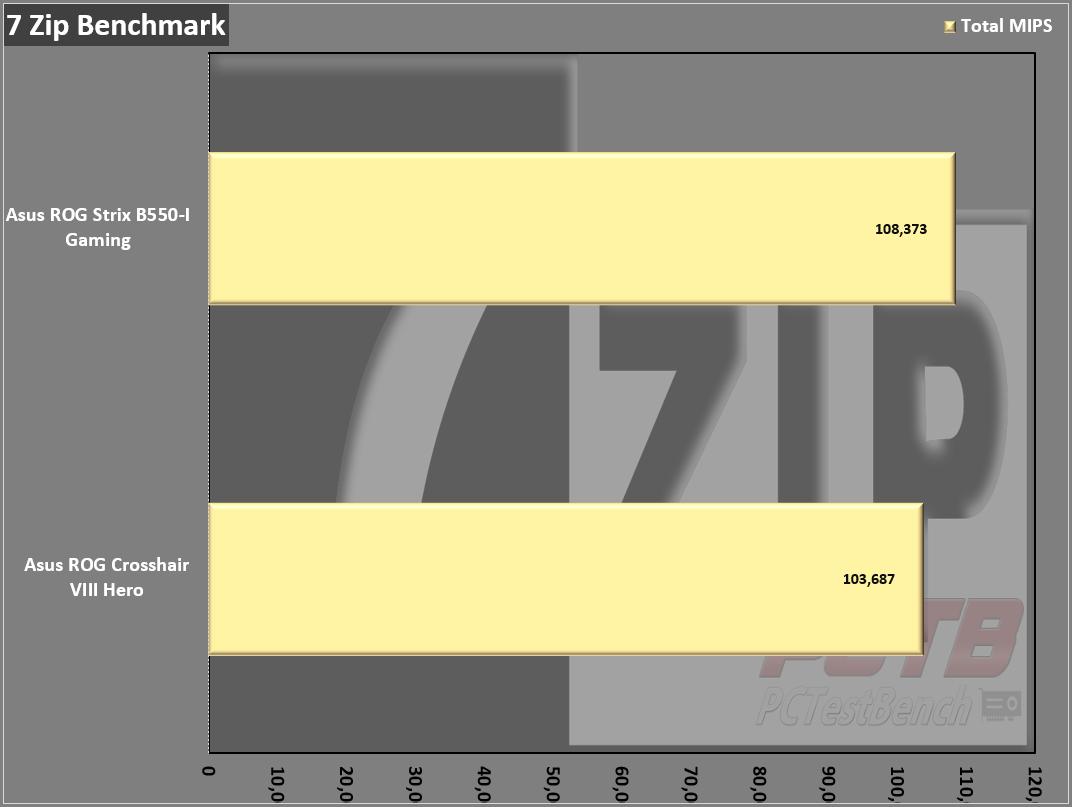

7-Zip

The benchmark shows a rating in MIPS (million instructions per second). The rating value is calculated from the measured speed, and it is normalized with the results of the Intel Core 2 CPU with a multi-threading option switched off. So, if you have a modern CPU from Intel or AMD, rating values in single-thread mode must be close to real CPU frequency. There are two tests, compression with the LZMA method and decompression with the LZMA method. Once the total passes reach 50, the score is taken.

ASUS ROG Strix B550-I Gaming AM4 Motherboard Review 11

The Strix B550-I holds about a 5% lead over the Crosshair.

System Memory Testing

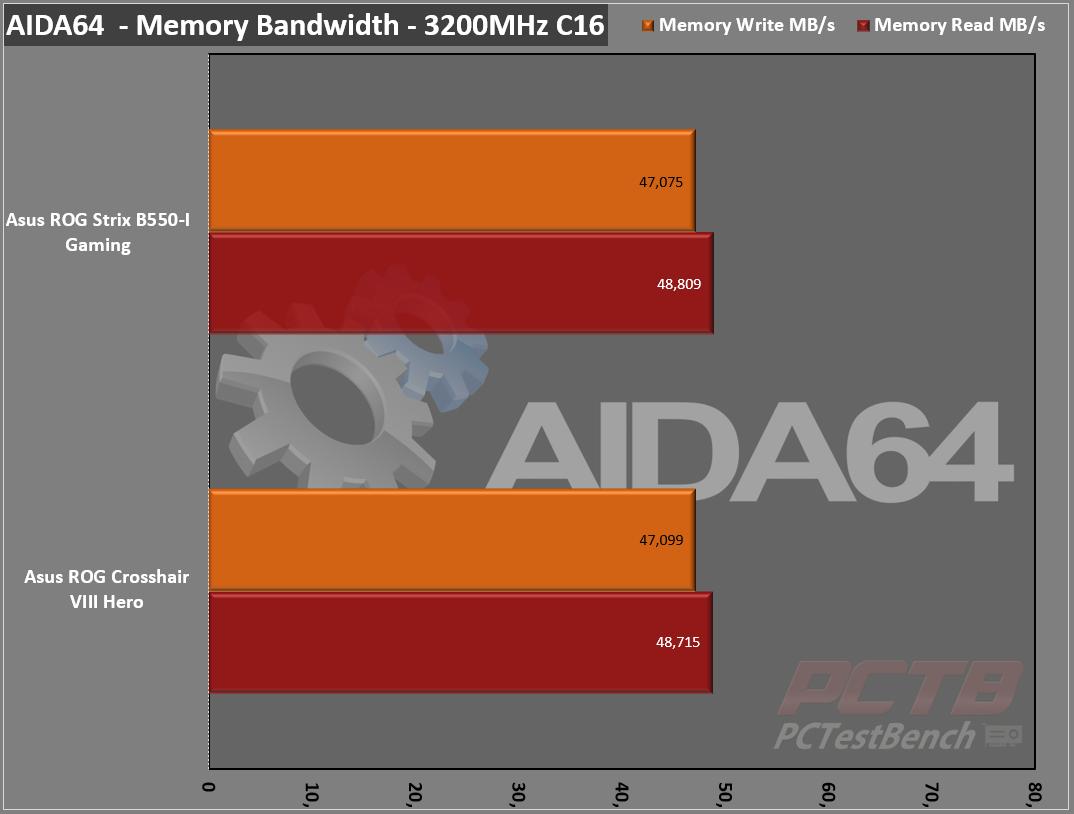

AIDA64 Engineer Edition

“FinalWire Ltd. today announced the immediate availability of AIDA64 Extreme Edition 1.50 software, a streamlined diagnostic and benchmarking tool for home users; and the immediate availability of AIDA64 Business Edition 1.50 software, an essential network management solution for small and medium scale enterprises. The new AIDA64 update implements AVX-optimized benchmarks for the upcoming Intel Sandy Bridge processors, adds a brand-new video encoding benchmark, and supports the latest AMD and NVIDIA graphics processors.”

ASUS ROG Strix B550-I Gaming AM4 Motherboard Review 12

Expectedly, the memory bandwidth test is about a wash. The Crosshair wins slightly in writes while the Strix leads slightly in reads.

ASUS ROG Strix B550-I Gaming AM4 Motherboard Review 13

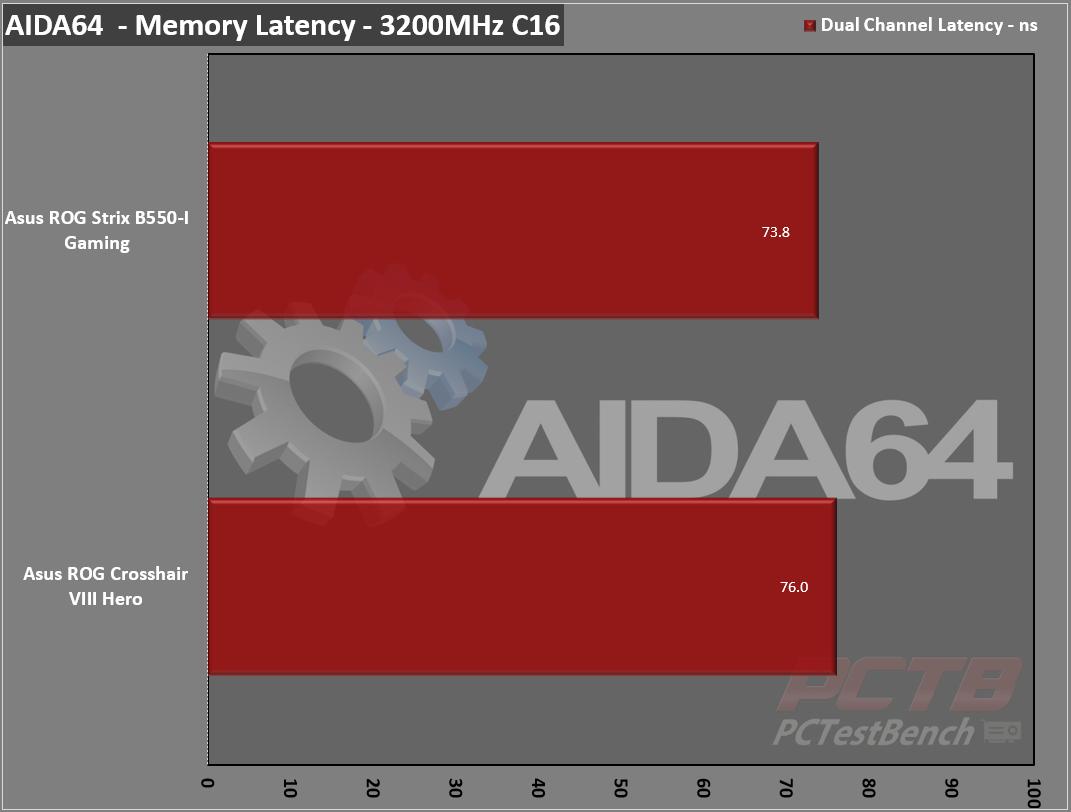

On the latency front, it seems the two-DIMM memory layout might provide a slight advantage here.

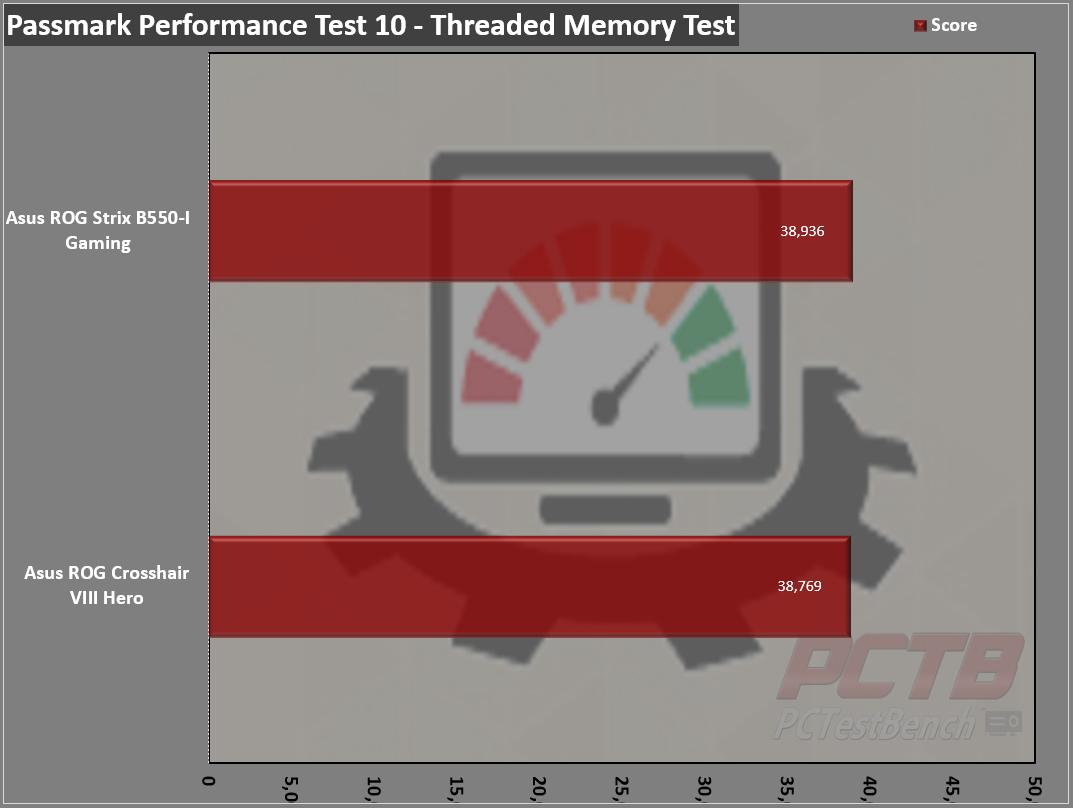

Passmark Performance Test – Memory Mark – Threaded

“Fast, easy to use, PC speed testing, and benchmarking. PassMark Performance Test ™ allows you to objectively benchmark a PC using a variety of different speed tests and compare the results to other computers.”

ASUS ROG Strix B550-I Gaming AM4 Motherboard Review 14

Passmark shows a very similar tight spread with the Strix B550-I holding a slight edge still.

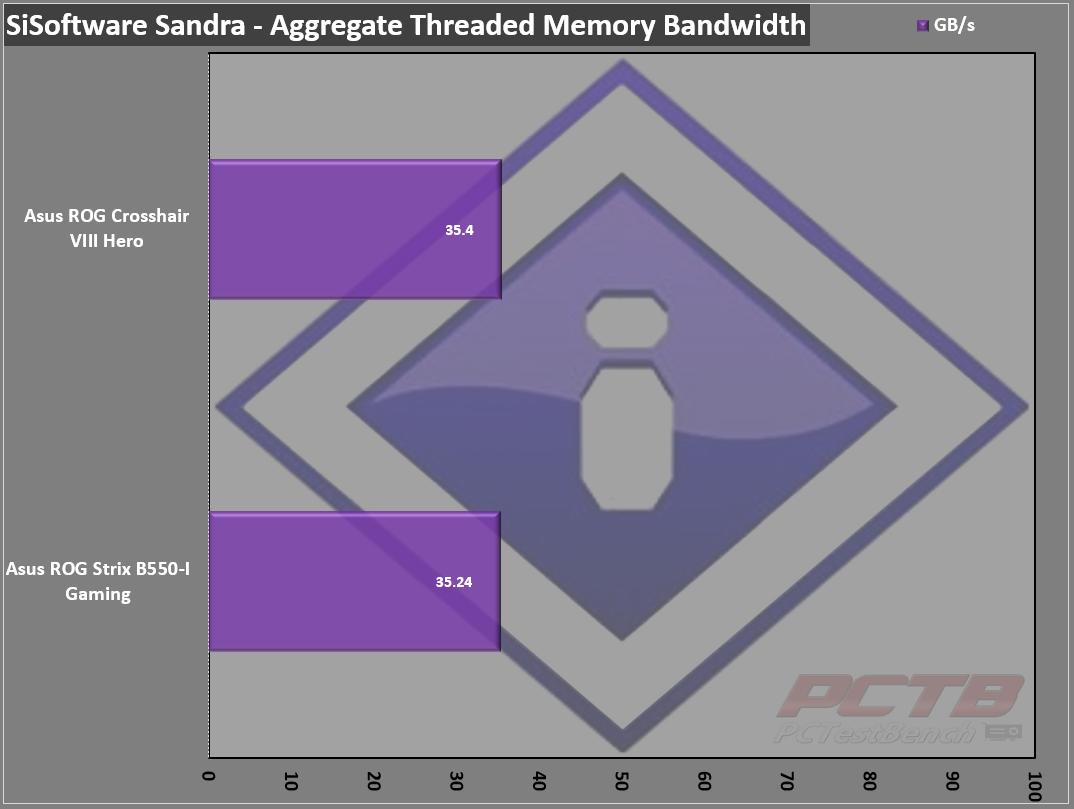

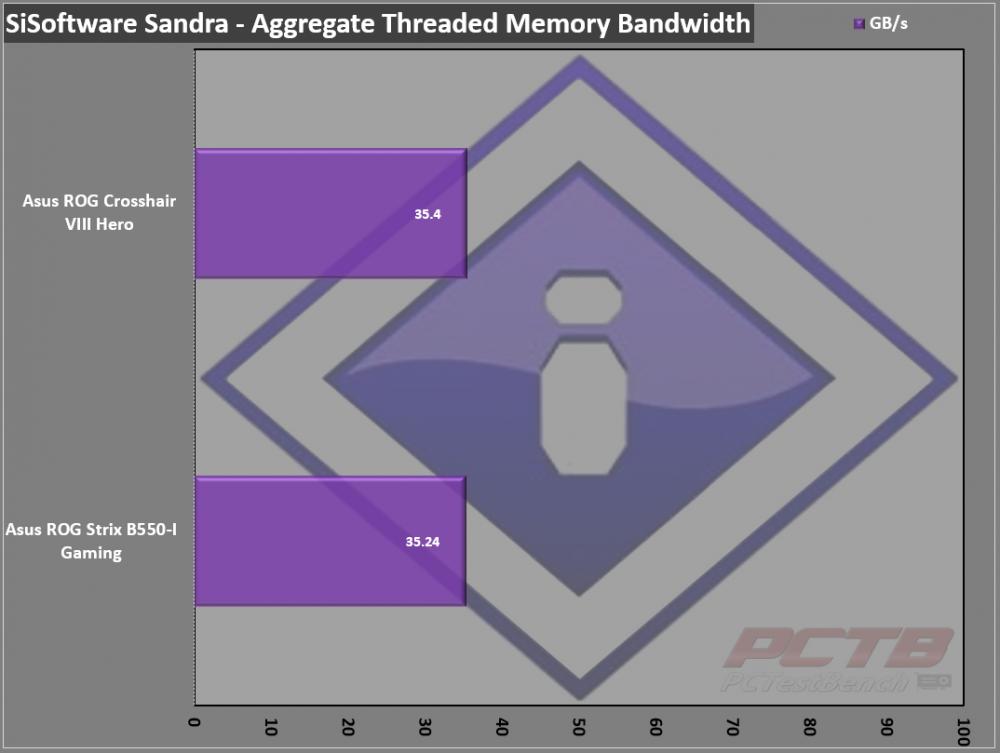

SiSoft Sandra – Memory Bandwidth – Aggregate.

“SiSoftware Sandra provides a robust package of diagnostic tools for testing your system and teasing out its problems–or potential headaches.”

ASUS ROG Strix B550-I Gaming AM4 Motherboard Review 15

SiSoft is our only memory test where the B550 falls behind the X570 platform, but only just.
