Motherboards

ASRock Z490 Phantom Gaming-ITX/TB3 Review

FAST / MYSETERIOUS / UNBEATABLE

CPU Performance Testing

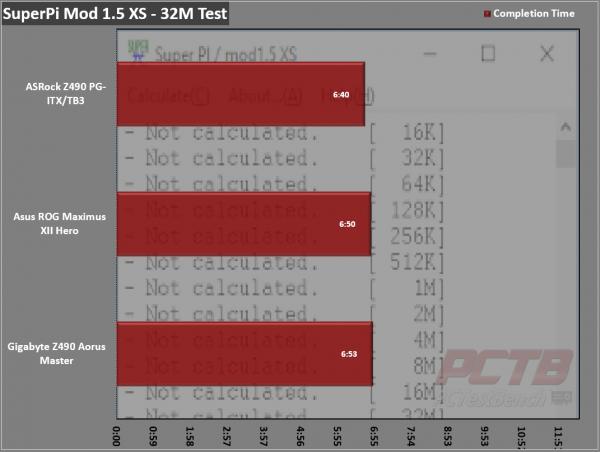

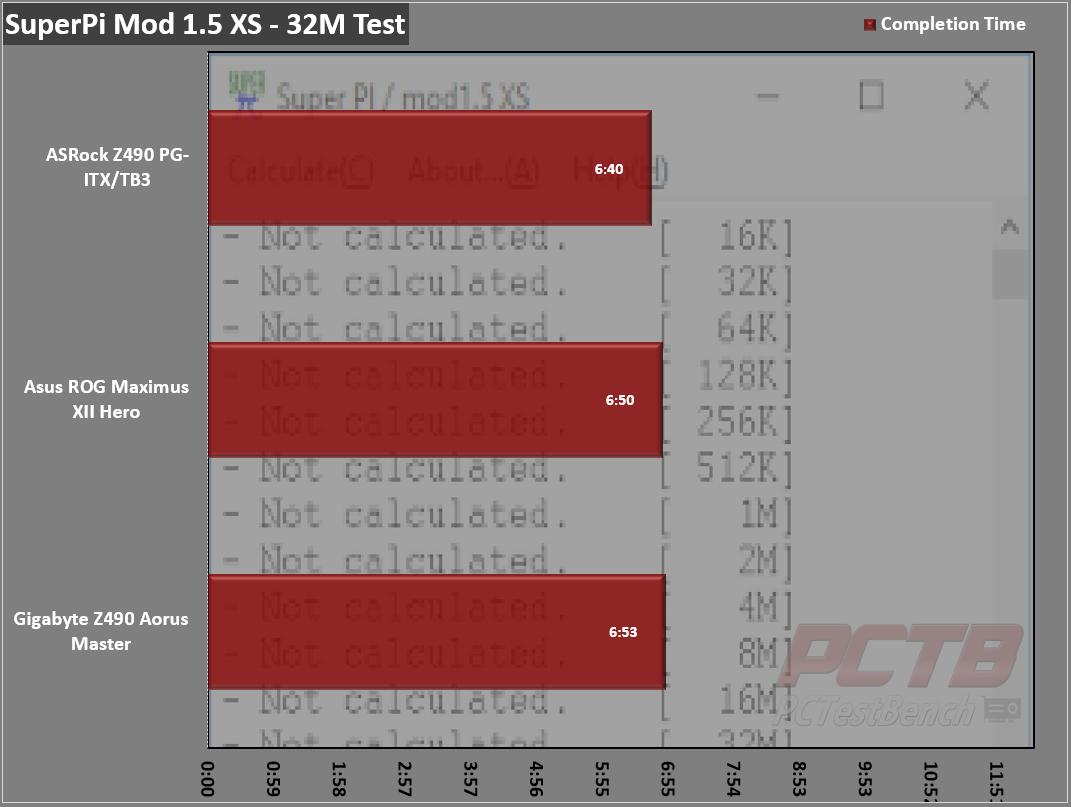

Super PI Modded 1.5

“In August 1995, the calculation of pi up to 4,294,960,000 decimal digits was succeeded by using a supercomputer at the University of Tokyo. The program was written by D.Takahashi in collaboration with Dr.Y.Kanada at the computer center. This record should be the current world record. (Details are shown in the windows help.) This record-breaking program was ported to personal computer environments such as Windows NT and Windows 95. In order to calculate 33.55 million digits, it takes within 3 days with a Pentium 90 MHz, 40 MB main memory, and 340 MB available storage.”

ASRock Z490 Phantom Gaming-ITX/TB3 Review 1 ASRock, Intel, ITX, Mini-ITX, Phantom Gaming, SFF, Small Form Factor, Thunderbolt

In this single-threaded test, the 10900K stays pegged at 5.3GHz the entire time which results in the fastest stock speed here we’ve seen to date.



CINEBENCH R15

“CINEBENCH is a real-world cross-platform test suite that evaluates your computer’s performance capabilities. CINEBENCH is based on MAXON’s award-winning animation software CINEMA 4D, which is used extensively by studios and production houses worldwide for 3D content creation. MAXON software has been used in blockbuster movies such as Iron Man 3, Oblivion, Life of Pi or Prometheus, and much more.

CINEBENCH is the perfect tool to compare CPU and graphics performance across various systems and platforms (Windows and OS X). And best of all: It’s completely free.”

We again see a single thread just blast ahead at full tilt for minutes on end for a killer score, but with all ten cores in play, it falls back to second place.



CINEBENCH R20

Cinebench is a real-world cross-platform test suite that evaluates your computer’s hardware capabilities. Improvements to Cinebench Release 20 reflect the overall advancements to CPU and rendering technology in recent years, providing a more accurate measurement of Cinema 4D’s ability to take advantage of multiple CPU cores and modern processor features available to the average user. Best of all: It’s free.

The same trend continues under Cinebench R20, but sustained all-core use certainly falls back to 4.9GHz around Intel’s standard time as expected.

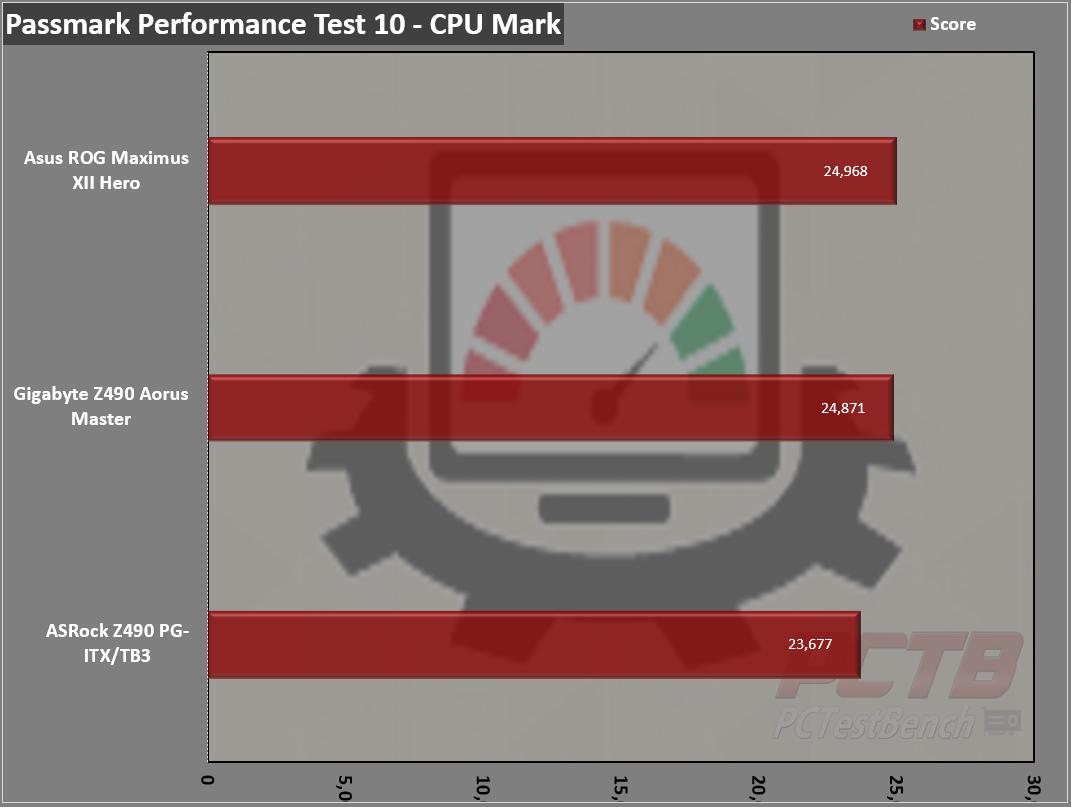

Passmark Performance Test – CPU Mark

“Fast, easy to use, PC speed testing, and benchmarking. PassMark Performance Test ™ allows you to objectively benchmark a PC using a variety of different speed tests and compare the results to other computers.”

ASRock Z490 Phantom Gaming-ITX/TB3 Review 6 ASRock, Intel, ITX, Mini-ITX, Phantom Gaming, SFF, Small Form Factor, Thunderbolt

Passmark’s full system test comes in a few points behind full-sized boards, with around 1k fewer points on the overall score.

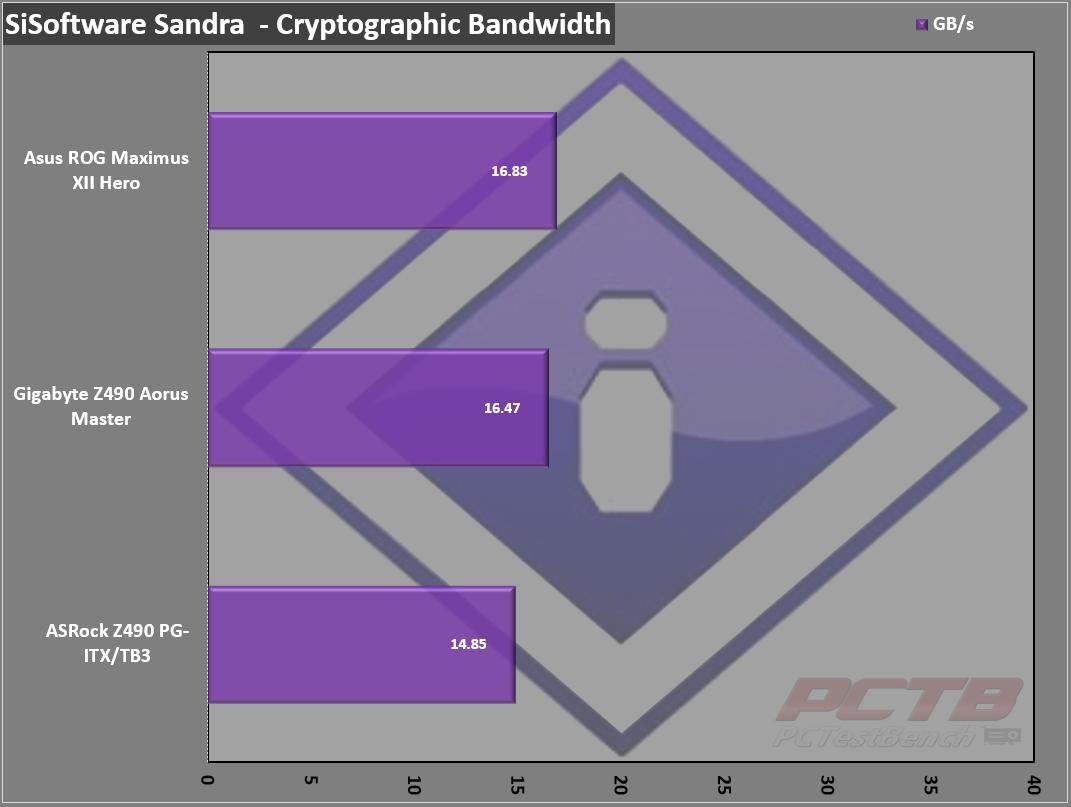

SiSoft Sandra – Cryptographic Bandwidth

“SiSoftware Sandra provides a robust package of diagnostic tools for testing your system and teasing out its problems–or potential headaches.”

ASRock Z490 Phantom Gaming-ITX/TB3 Review 7 ASRock, Intel, ITX, Mini-ITX, Phantom Gaming, SFF, Small Form Factor, Thunderbolt

Sisoft registered about 1.5GB/s less on CPU based cryptographic bandwidth as well, another all-core test.

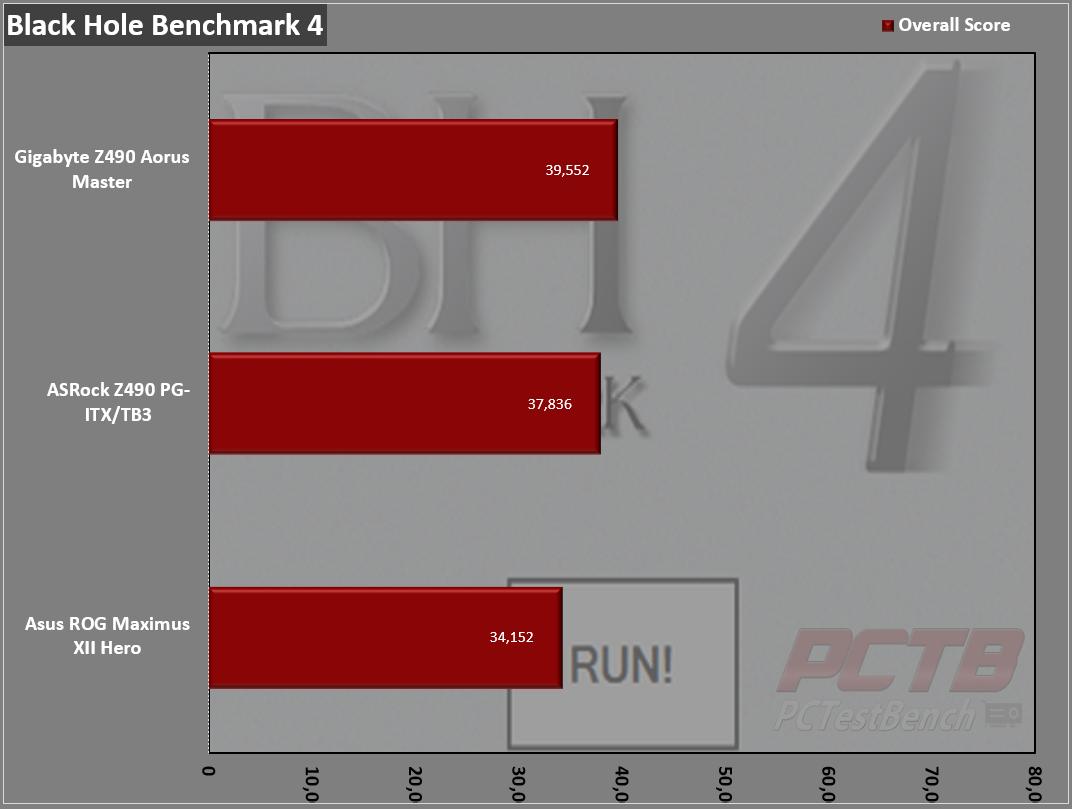

Black Hole 4.2

Let the beast run and benchmark your system in three different tests (Multithreaded, Single-threaded & 4-Threaded) that will test your CPU to the very limit, and score you among hundreds of other systems that have tested.

Multithreaded will test your CPU’s efficiency of running more than one thread without major system lag. The higher you score on this one, the more threads your CPU can handle with a comfortable speed. High multithreaded scores generally mean you can render things faster.

4-Threaded tests your CPU’s performance in games since most games currently run on 4 threads.

Single-threaded evaluates how fast the CPU can handle a single, dedicated thread for processing.

ASRock Z490 Phantom Gaming-ITX/TB3 Review 8 ASRock, Intel, ITX, Mini-ITX, Phantom Gaming, SFF, Small Form Factor, Thunderbolt

Blackhole runs a single-threaded test, a four threaded test, and an all core. The Phantom Gaming ITX/TB3 knocks it out of the park on the first two tests and does decently on the all core test for a mid-place run.
