Under the Hood

ASRock Z490 Phantom Gaming-ITX/TB3 Review 1

Getting all the covers off is quite an involved process, and given that you have to peel the cover plate off of its double-sided tape covered home to even get started, we don’t recommend doing this yourself.

ASRock Z490 Phantom Gaming-ITX/TB3 Review 2

With all of that out of the way, we can start to get a look at the board. There is quite a pile of fan wiring for the actively cooled VRM heatsinks but it all goes back to one header.

ASRock Z490 Phantom Gaming-ITX/TB3 Review 3

The CPU socket is driven from a 9-phase VRM set up in what appears to be a 6+2+1 setup for Vcore, VCCIO, and VCCSA.

ASRock Z490 Phantom Gaming-ITX/TB3 Review 4

The VRM is controlled from an Intersil ISL69269 PWM controller.

ASRock Z490 Phantom Gaming-ITX/TB3 Review 5

The power stages themselves are 90A rated Digi-power Intersil ISL99390 smart power stages.

ASRock Z490 Phantom Gaming-ITX/TB3 Review 6

Back near the I/O is Intel’s T803A900 Titan Ridge Thunderbolt controller. This controller is capable of supporting dual Thunderbolt 3 ports, but ASRock only puts one to use here.

ASRock Z490 Phantom Gaming-ITX/TB3 Review 7

Realtek’s Dragon RTL8125BG 2.5Gb LAN controller is their first single-chip 2.5GBE controller.

ASRock Z490 Phantom Gaming-ITX/TB3 Review 8

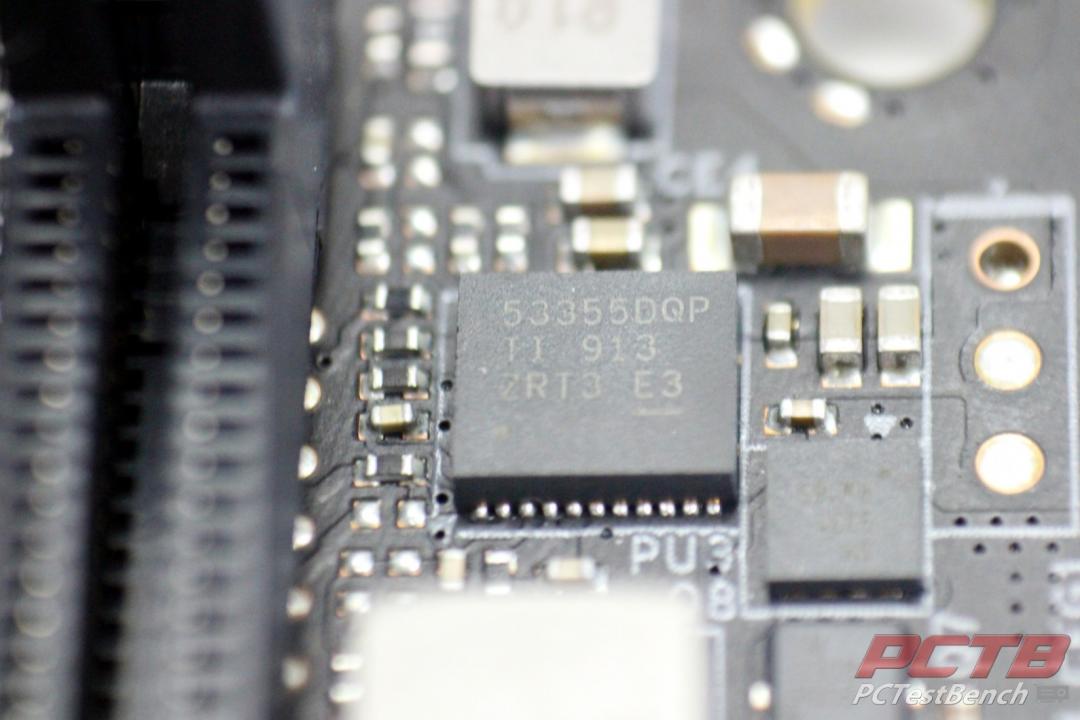

A single memory phase is provided by a Texas Instruments 53355dqp 30A Synchronous Buck Converter.
