Intel Core i5-11600K CPU Review

Designed to Game

Overclocking, Power & Thermals

Intel Core i5-11600K CPU Review 1

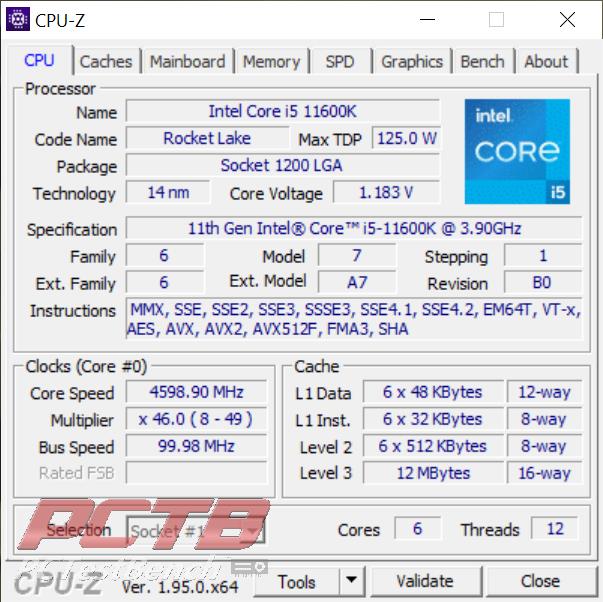

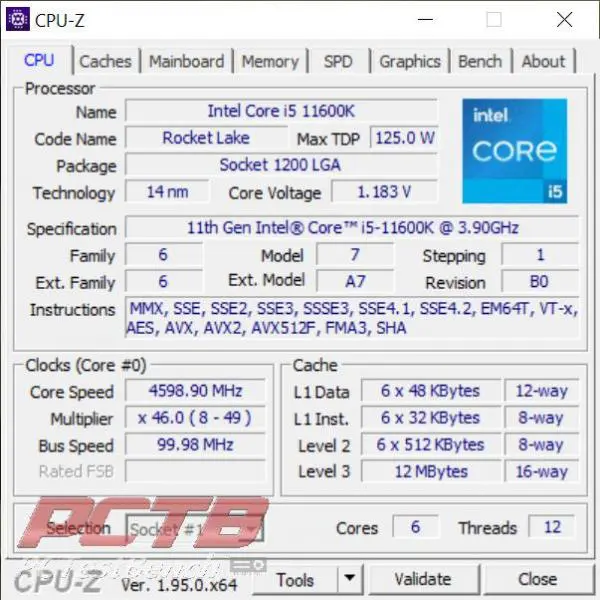

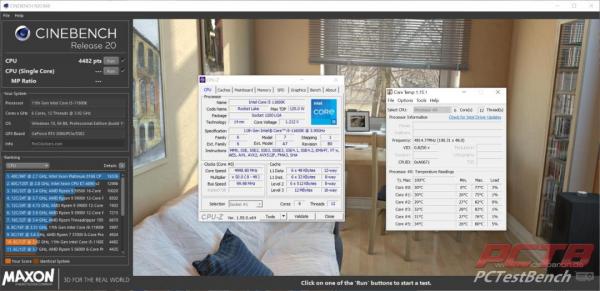

Intel’s Core i5-11600K typically runs at 4.9GHz lightly loaded and 4.6Ghz with all cores in use, we’ll see if we can get any more out of it.

Intel Core i5-11600K CPU Review 2

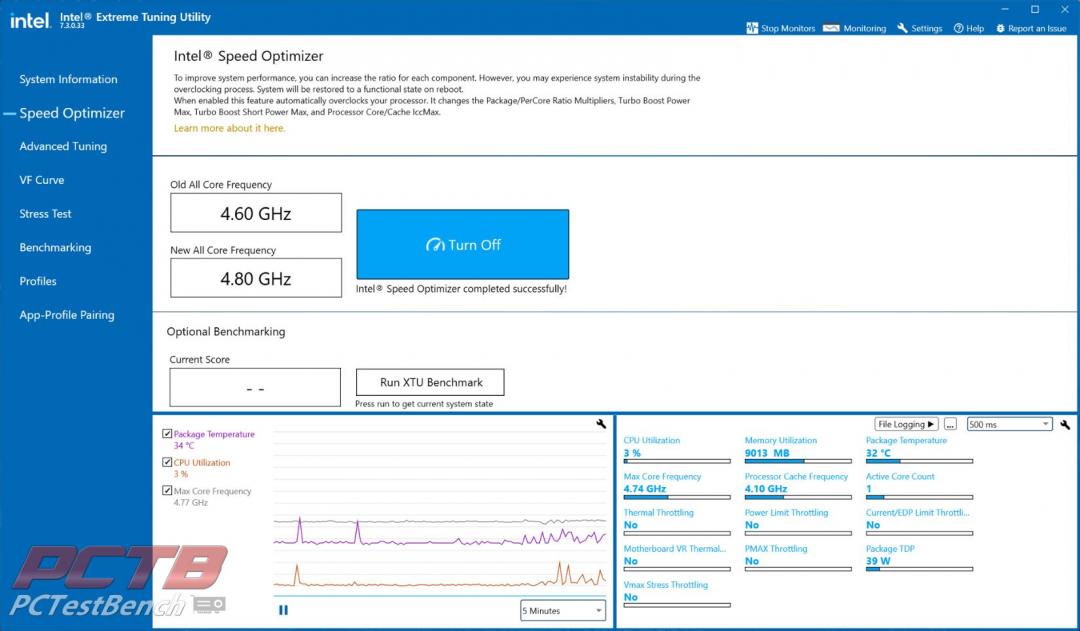

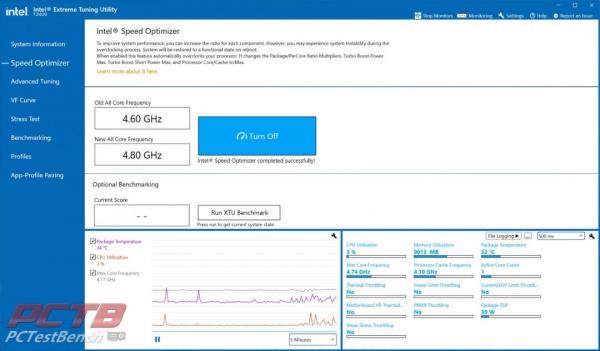

We always like to try any automatic tools available to us first and Intel’s latest XTU versions include a ‘Speed Optimizer’. Turing this on gets us an all-core speed of 4.8GHz.

Intel Core i5-11600K CPU Review 3

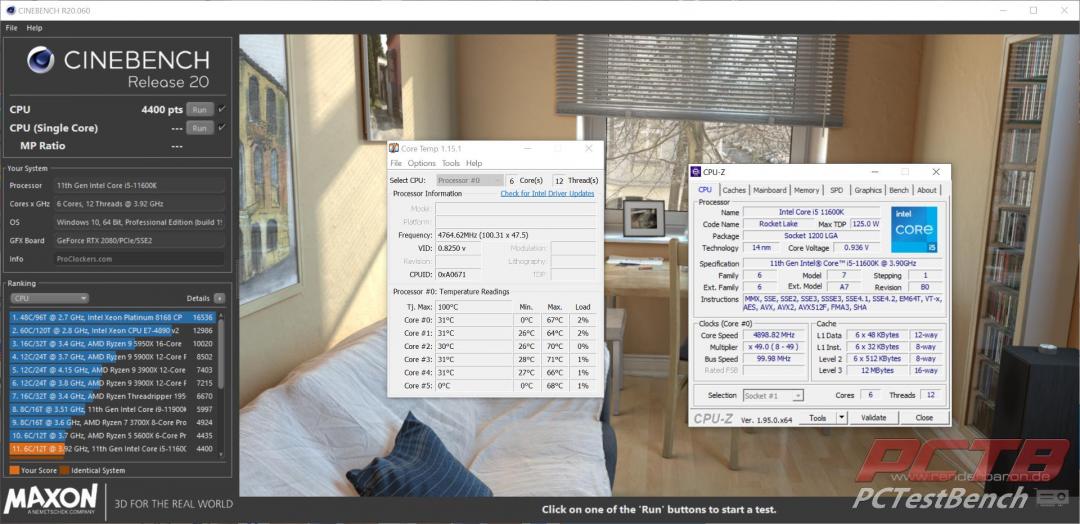

This gives us a nice jump to 4400 points even from the stock run of 4277.

Intel Core i5-11600K CPU Review 4

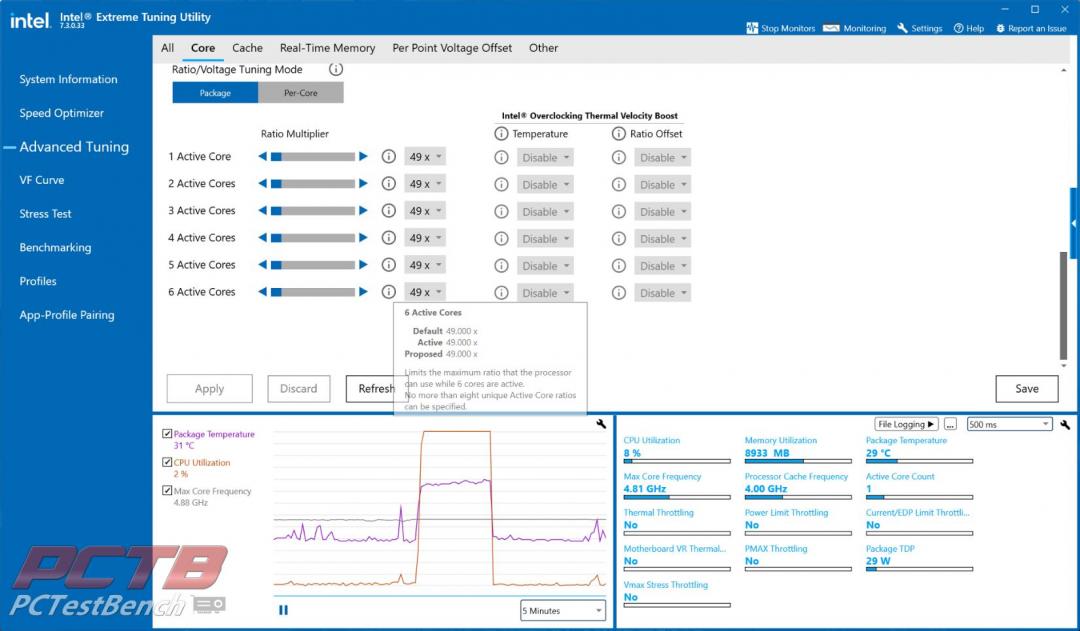

From here we’ll carry on manually to 4.9GHz.



We see another decent Intel Core i5-11600K CPU Review 5jump of 115 points to 4515. Temps are still barely touching the 70C mark and we haven’t even tried to fine-tune voltage, we’re just letting our Asus board sort it out on its own.

Intel Core i5-11600K CPU Review 6

Next up is 5.0 GHz but this requires a modest core voltage bump of +0.15V to get stable.

Intel Core i5-11600K CPU Review 7

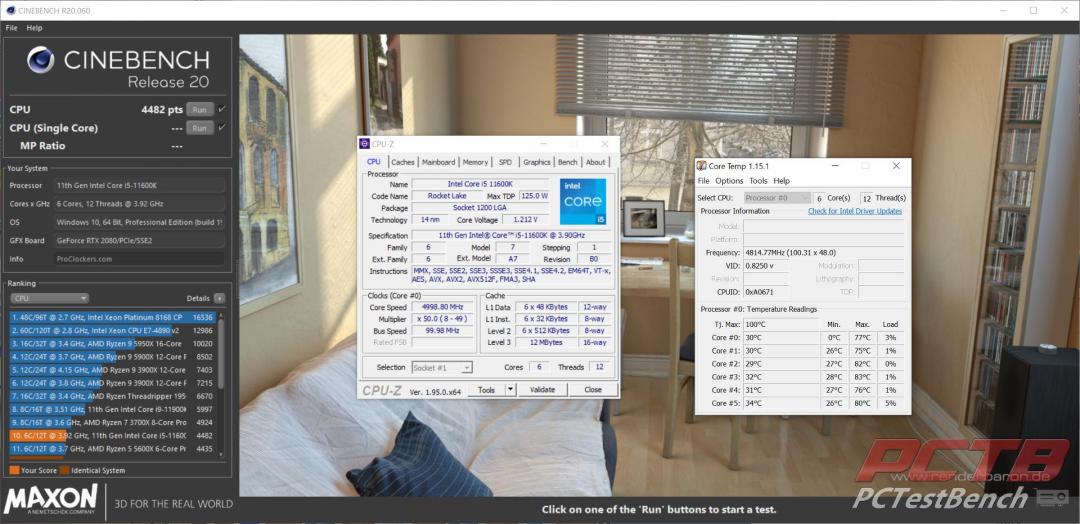

Our score actually falls just a touch…

Intel Core i5-11600K CPU Review 8

.. and the culprit is power limits.

Intel Core i5-11600K CPU Review 9

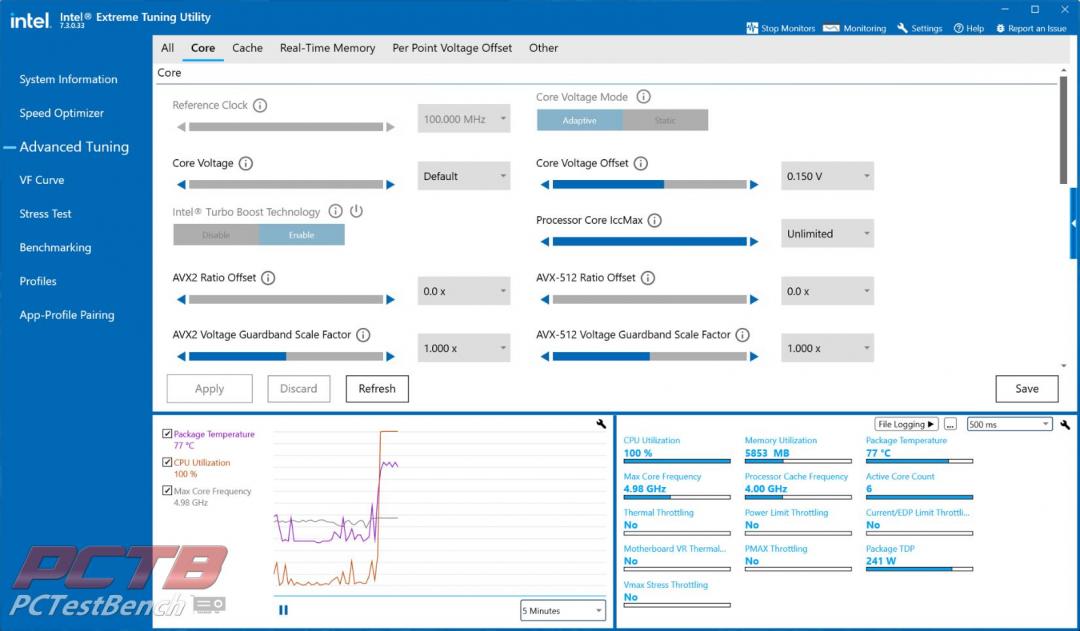

Since our temps were good and the power limit is a software setting we can fix in the BIOS, we went ahead and jumped to 5.1GHz on all cores. This requires another voltage bump, up to +0.23V on the core offset.

Intel Core i5-11600K CPU Review 10

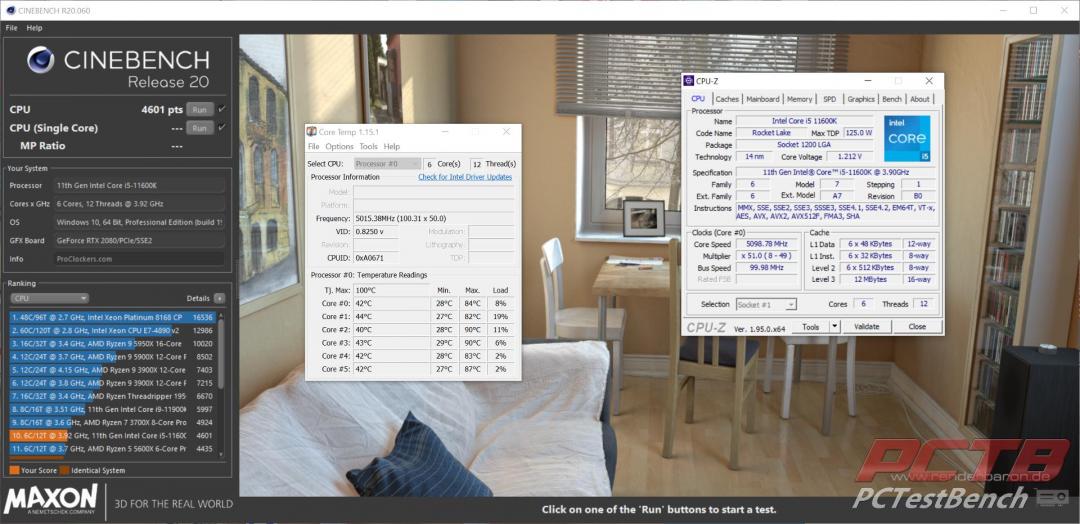

Our final score lands at 4601, about a 7.5% increase over stock. Temps are sitting around the 90C mark and power draw is landing about 285W in this configuration. 5.2GHz just refused to work for us, so this is the final OC we achieved.
