Cooling

Phanteks Glacier One 360 MP Liquid Cooler Review

Keep your CPU cool and quiet with the Phanteks Glacier One AIO

Phanteks has gotten a pretty good reputation in the cooling world the last few years with its Glacier products. While custom loop water cooling has gotten more and more popular, the majority of users just want to bolt a cooler in and go without all the difficulty and perceived risk of a custom loop. Phanteks hears you, and today we get to see that awesome middle ground known generally as an All-in-One liquid cooler. Introducing the new Glacier One series of coolers! The Glacier One family starts with four coolers, a 240mm model, 280mm, 360mm, and a special white 240mm version bundled with Phanteks Halo fans. Today we’ll be looking at the biggest member of the family, the Glacier One 360 MP. This 360mm cooler provides the most surface area and most fans for handling the biggest and baddest builds around and even your overclocking adventures with ease.



PC Test Bench would like to thank Phanteks for sending over the Glacier One 360 MP for us to check out!

Phanteks take on the Glacier One 360 MP:

​ The new Glacier One all-in-one liquid CPU coolers are capable of cooling powerful CPUs while operating silently. The included 120/140mm MP PWM fans offer high airflow, low noise, and excellent cooling performance with its pressure optimized fan blades. Installation is a breeze thanks to the pre-filled all-in-one solution, flexible braided tubing and Tube Clips that help routing the tubing and fan cables for a clean PC interior. The Glacier One features a pump cap design with a tempered glass infinity mirror and integrated D-RGB lighting. Simply connect to a D-RGB equipped Phanteks chassis or motherboard to control, sync and expand your lighting setup.

The Glacier One features a pump cap design with a tempered glass infinity mirror and integrated D-RGB lighting. Simply connect to a D-RGB equipped Phanteks chassis or motherboard to control, sync, and expand your lighting setup!

Features:

  • INFINITY MIRROR CAP
    • Clean full cover design with easy and secure magnetic mounting
    • Tempered glass window with smooth and diffused D-RGB lighting

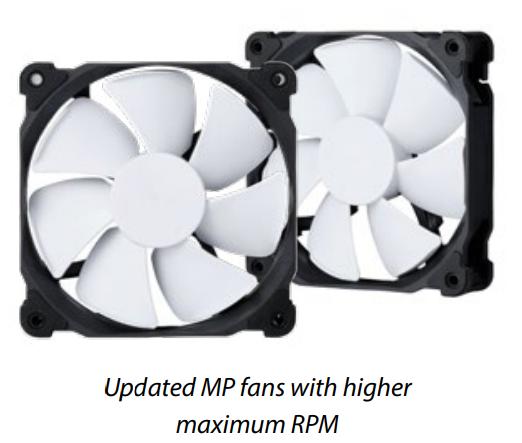

  • SILENT MP PWM FANS
    • High surface area blades for high-pressure performance
    • Aerodynamically optimized for silent operation

  • COOLED BY ASETEK
    • Gen7 Asetek AIO platform delivers the best in class performance
    • Pump PWM control to optimize pump speed for acoustics and performance
    • Out-of-bound temperature sensing enables the pump speed to automatically boost up to 3600 RPM when the liquid temperature is above 60C
    • Built-in safety curve feature to ensure the liquid temperature stays within limits for normal safe operation

  • MAXIMUM CLEARANCE
    • Low profile pump cap for reduced height
    • Rotary fittings are located close to the pump to maximize RAM clearance

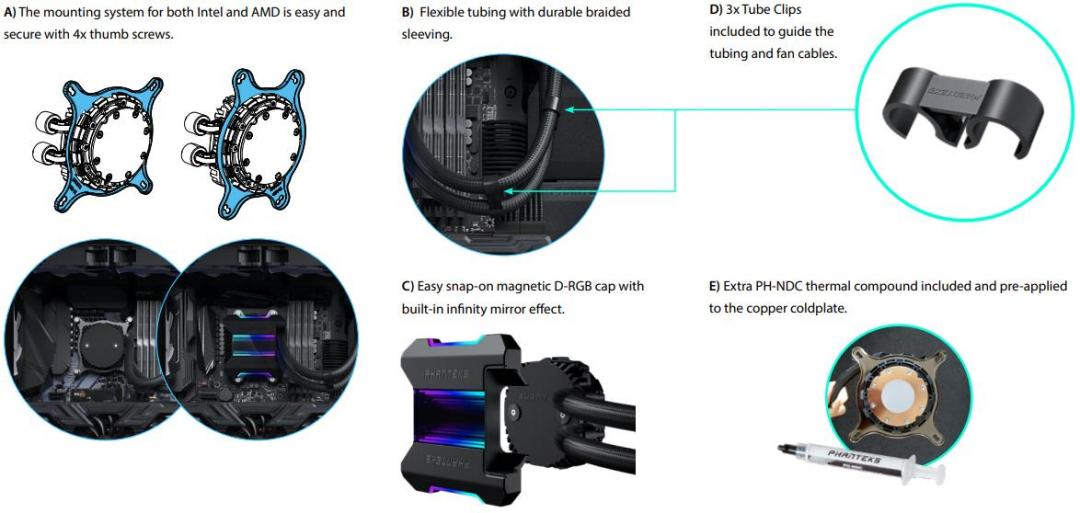

  • INTUITIVE INSTALLATION
    • Compatible with all common Intel and AMD Sockets
    • Toolless and intuitive mounting system
    • Thermal compound is pre-applied and comes included with an additional PH-NDC thermal compound for future re-installation
    • Flexible tubing with durable braided sleeving
    • 3x Tube Clips included to guide the tubing and fan cable for a clean and tidy case interior

Quick Specs:

  • Cooler Type – AIO Liquid Cooler
  • Socket Compatibility
    • Intel – LGA 115x, 1200, 1366, 2011, 2011-3, 2066
    • AMD – AM4, sTRX4*, TR4* (*Threadripper bracket included with CPU)
  • Net Weight – 1.47kg (3lb, 4oz)
  • Warranty – 6 Years
  • Tubes
    • Tubing Length – 400mm
    • Tubing Outer Diameter – 11mm
    • Fittings – Rotary

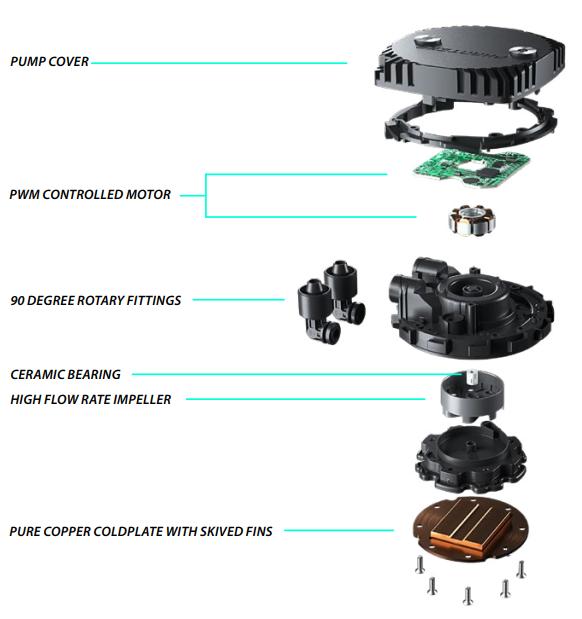

  • Pump
    • Pump Speed
      • PWM: up to 2800 RPM +/- 300
      • Out-of-bound temperature sensing enables the pump speed to automatically boost up to 3600 RPM when the liquid temperature is above 60C
    • Pump Power – 4-pin PWM fan connector, 12V, 0.3A, 3.6W
    • Pump Cable Length – 245mm
    • Pump Bearing – Ceramic Bearing & Shaft
    • Pump Material – Copper & ABS Plastic
    • Cooling Liquid – Distilled Water / Propylene Glycol mix
  • Radiator

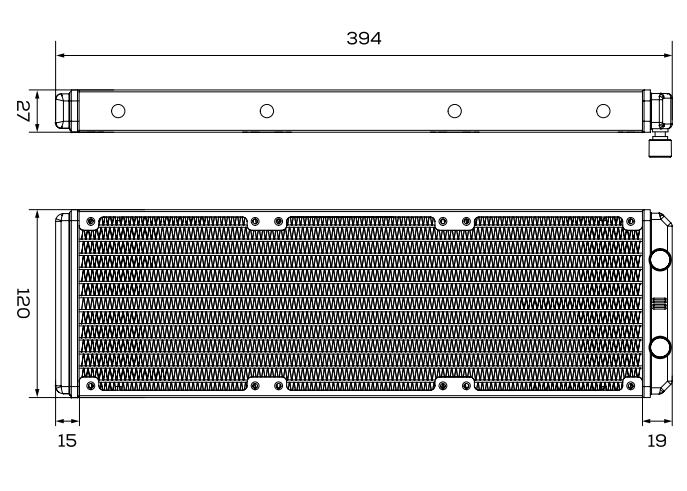

    • Dimensions – 394 mm x 120 mm x 27 mm (15.5 in x 4.7 in x 1.1 in)
    • Material – Aluminum
    • Fin Density – 21 FPI
  • Infinity Mirror Cap
    • Cap Power – 3-pin D-RGB, 5V, 0.42A, 2.1W
    • RGB Cable Length – 550mm + 75mm daisy chain connector
    • Material – Tempered Glass, ABS
    • LED Quantity – 14 LED’s
  • Fans
    • Included Fans – Three 120mm
    • Bearing Type – UFB (Updraft Floating Balance) Bearing
    • Fan Power (each) – 4-pin PWM, 12V, 0.15A, 1.8W
    • Speed – 500 – 2200 RPM +/- 10%
    • Airflow – 13.8 – 60.51 CFM
    • Pressure – 0.17 – 3.41 mm- H₂O
    • Cable Length – 130mm Daisy Chain + 500mm Extension
