ASUS TUF Gaming X3 Radeon RX 5700 XT EVO Review

lock and load your rig with the TUF Gaming X3 EVO.

A Closer Look

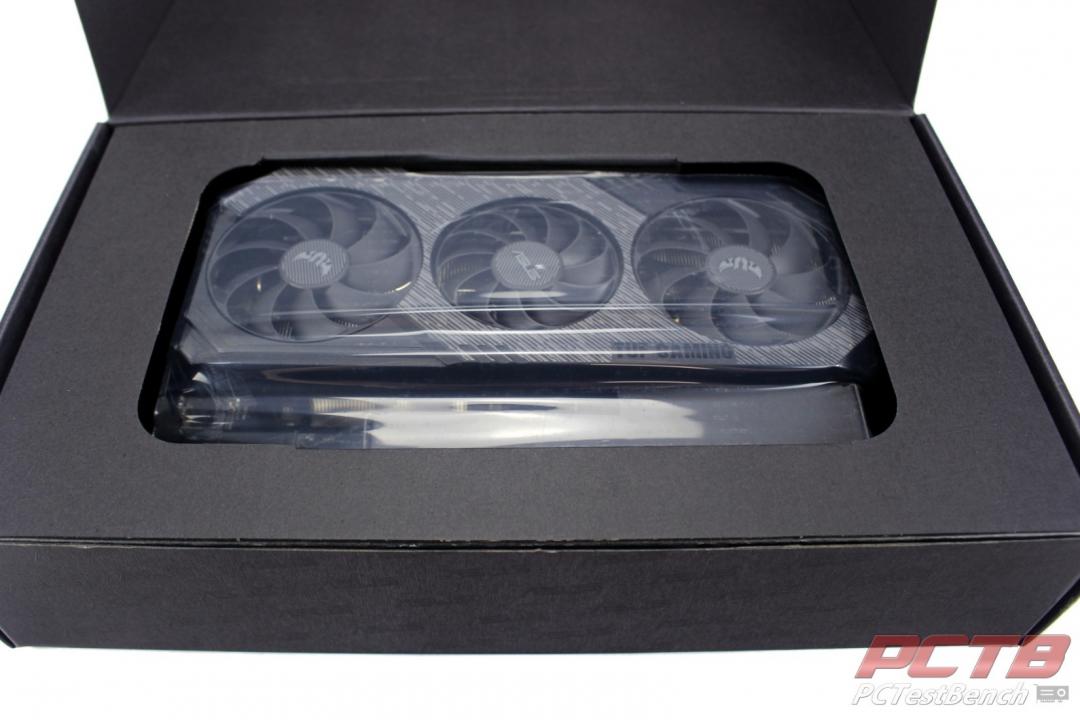

Asus’s TUF Gaming X3 RX 5700XT comes in a relatively small box with a picture of the card on the front and specs and features on the back. The card itself is almost shrink-wrapped into an origami-folded carrier. Follow the instructions inside on how to extricate the card safely.

ASUS TUF Gaming X3 Radeon RX 5700 XT EVO Review 4

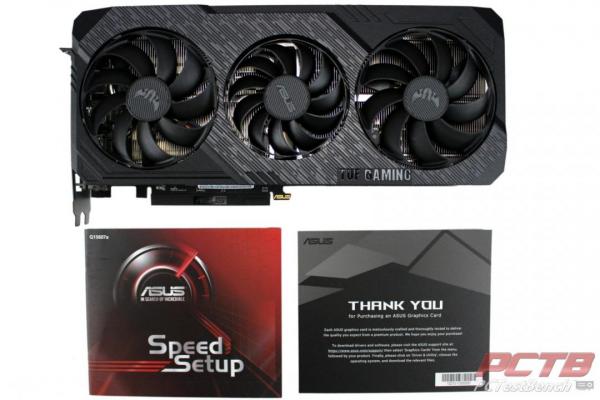

Besides the card, you get a thank you note from Asus and a speed setup manual.

ASUS TUF Gaming X3 Radeon RX 5700 XT EVO Review 5

The face of the TUF Gaming RX 5700XT has three fans, the center one being just a touch smaller. The main shell is matte black with much of the face having a grey pattern at an angle.

ASUS TUF Gaming X3 Radeon RX 5700 XT EVO Review 6

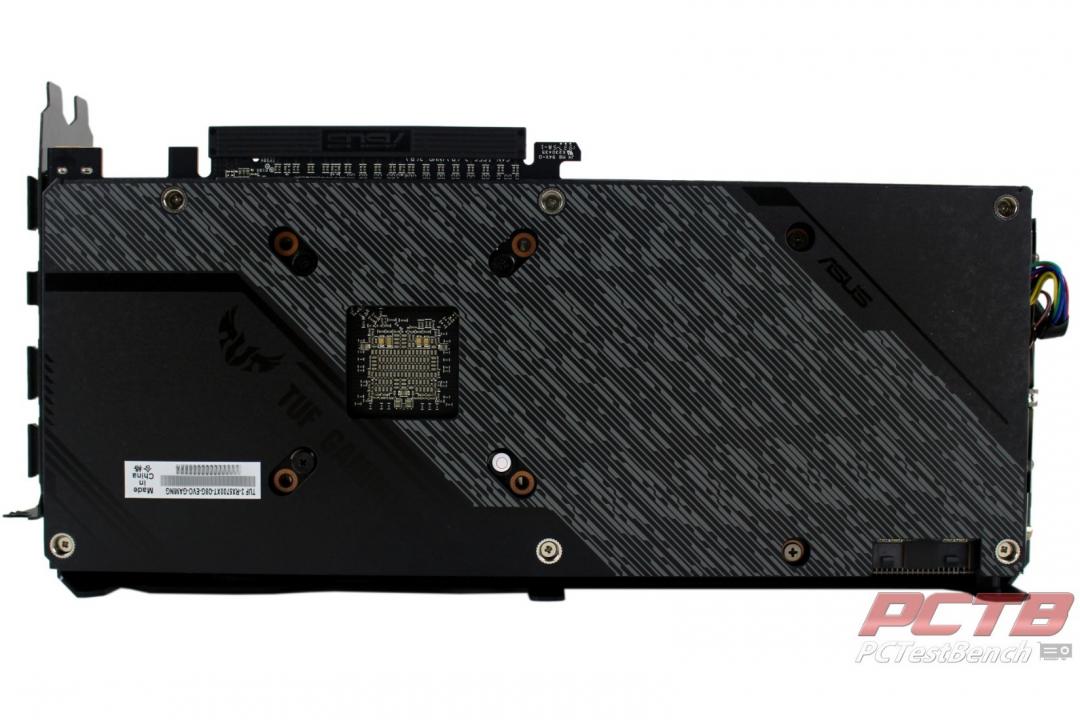

The rear has the same pattern across the backplate. There is an opening right over the GPU die but the plate covers everything else.

ASUS TUF Gaming X3 Radeon RX 5700 XT EVO Review 7

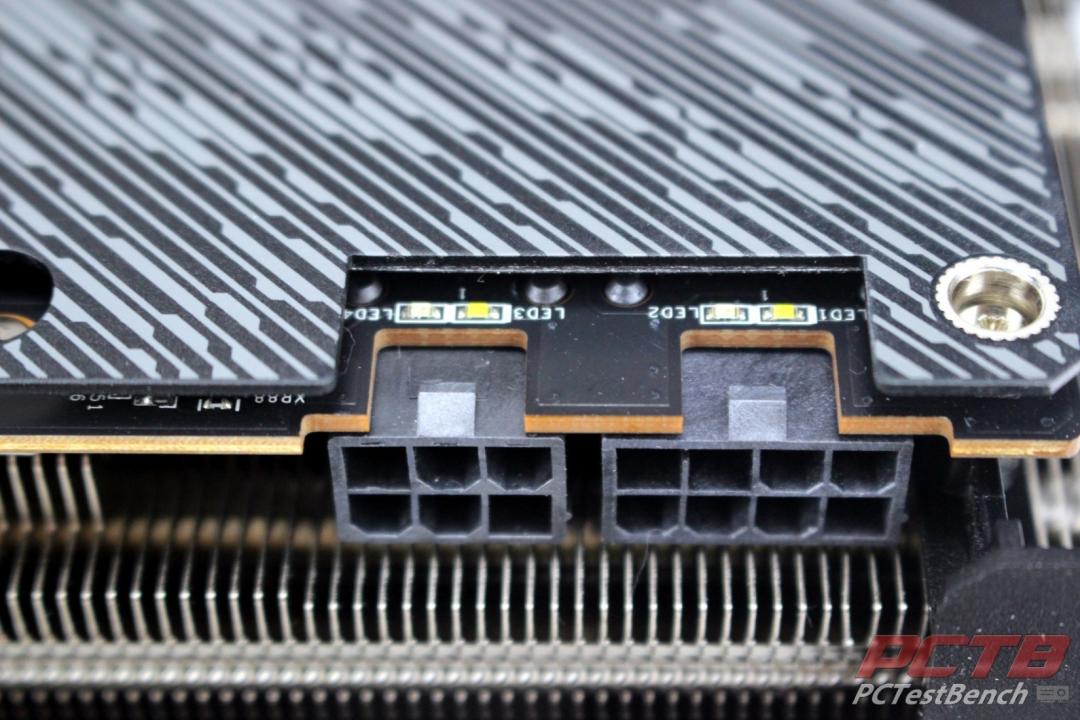

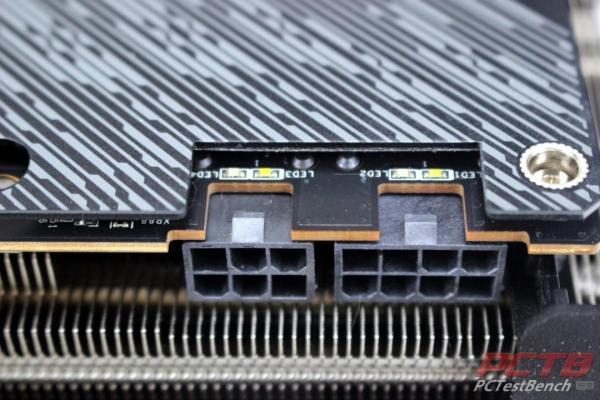

A trickle-down of more recent Strix family cards, each PCIe power connection has two LEDs on it to indicate good or bad status. An 8-pin and a 6-pin provide the main power to the TUF card.

ASUS TUF Gaming X3 Radeon RX 5700 XT EVO Review 8

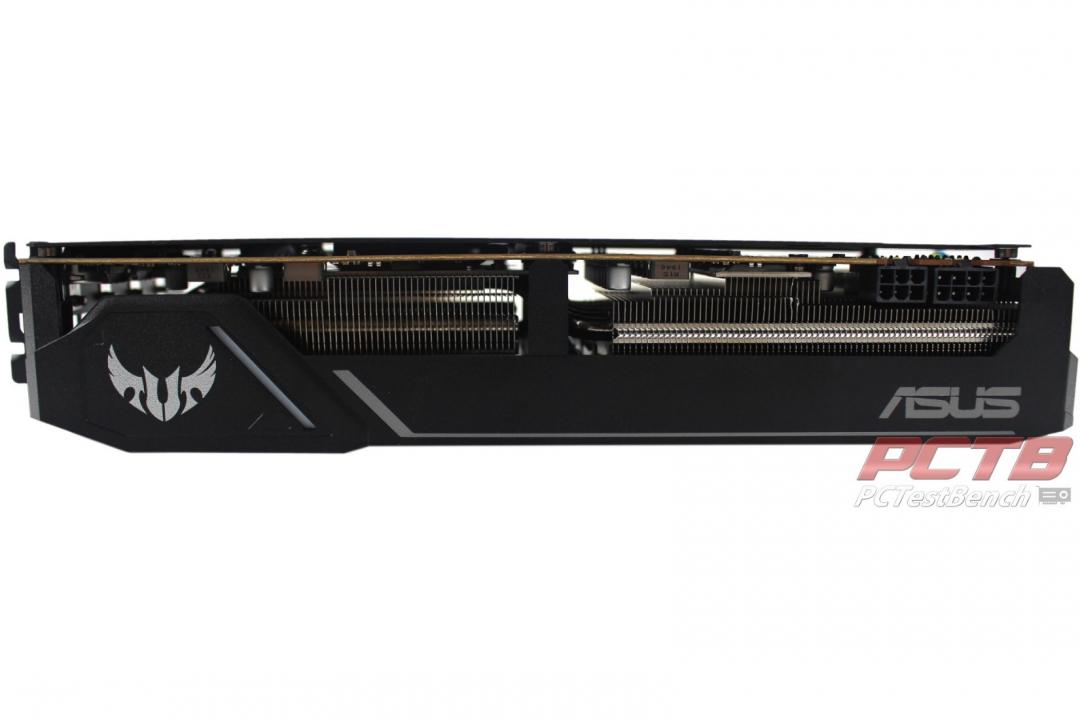

The outer edge has the TUF Gaming logo towards the rear of the card, with a low-key milky strip next to it bearing a gentle touch of RGB. You can see from this angle how massive the 2.7-slot cooler really is.

ASUS TUF Gaming X3 Radeon RX 5700 XT EVO Review 9

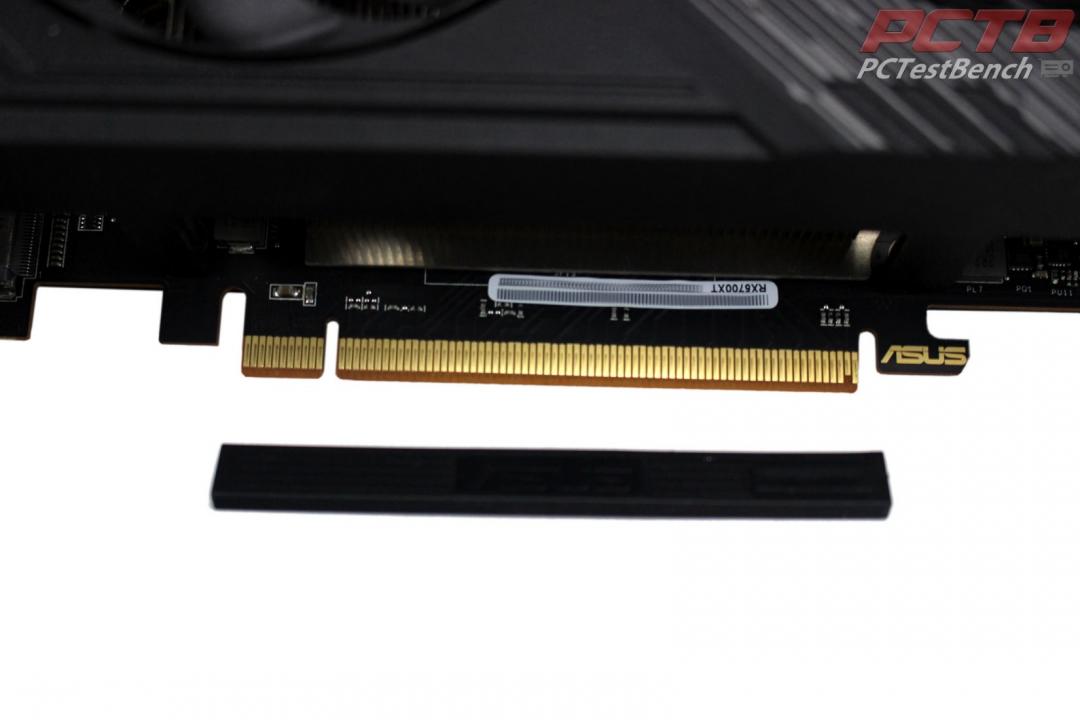

The flip side has your typical PCIe x16 slot, with a rubber cover to protect it during shipping.

ASUS TUF Gaming X3 Radeon RX 5700 XT EVO Review 10

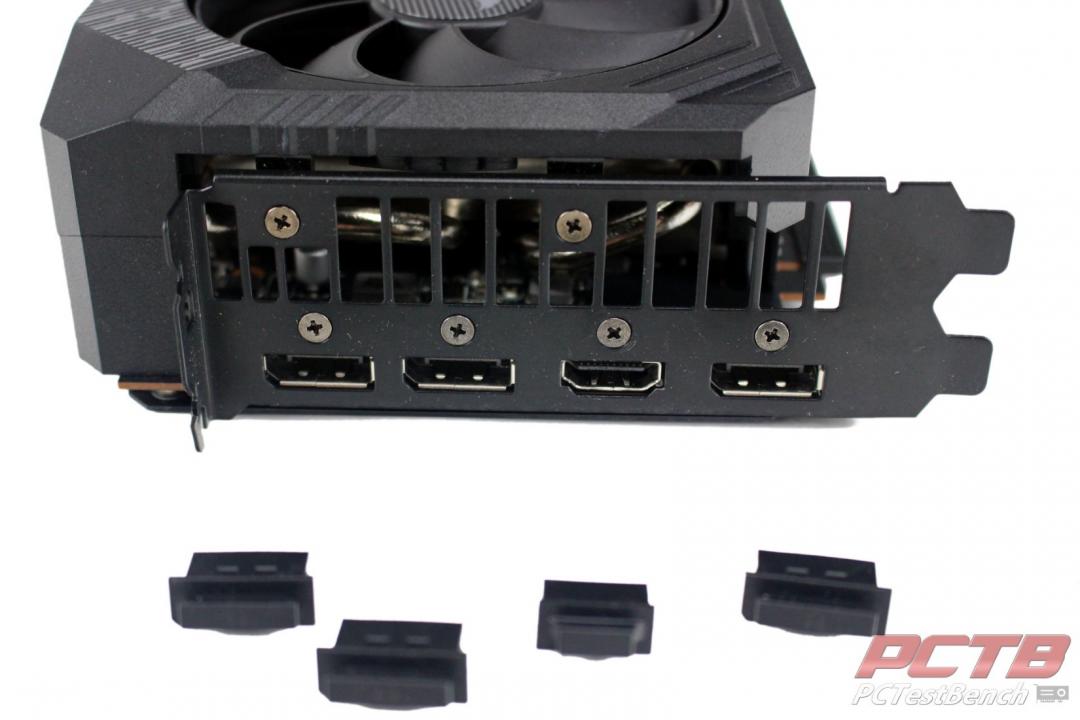

On the business end, you have 4 video ports, a single HDMI 2.0b, and a trio of Display Port 1.4. Each is covered with a rubber plug.
