Aorus RGB Memory DDR4 3600 MHz Review

Style and Performance

System Installation & Testing

aorus RGB ram 3600 MHz

For this and other reviews, we use our standard I9 9900k test bench for testing hardware. As of the time of this review, here is the hardware not the testbench used to test the Aorus RGB memory.

  • Processor: Intel I9 9900k
  • Graphics Card: MSI Gaming X 1080 ti with Phantex Waterblock
  • Motherboard: ASUS ROG Maximus XI Apex With Bitspower Monoblock
  • Cooling:  Swiftech H320 X2 Prestige with Bitspower monoblock
  • Memory: Aorus RGB Memory DDR4 3600 MHz
  • Storage: 1 TB Crucial P1 NVMe M.2
  • Power Supply: 1600 Watt EVGA SuperNova P2 80+ Platinum
  • Case: Lian Li PC T70 Test Bench

Aorus RGB ram Installed on bench

  • CPU-Z
  • AIDA64 Extreme Edition
  • Passmark Performance Test
  • SiSoft Sandra
  • 7-Zip
  • Super Pi Modded 1.5

7-Zip

The 7-zip benchmark shows a rating in MIPS (million instructions per second). The rating value is calculated from the measured speed, and it is normalized with the results of Intel Core 2 CPU with the multi-threading option switched off. So, if you have a modern CPU from Intel or AMD, rating values in single-thread mode must be close to real CPU frequency. There are two tests, compression with the LZMA method and decompression with the LZMA method. Once the total passes reach 100, the score is taken. 7-Zip gives the resulting score for decompressing, compressing, and an overall score.

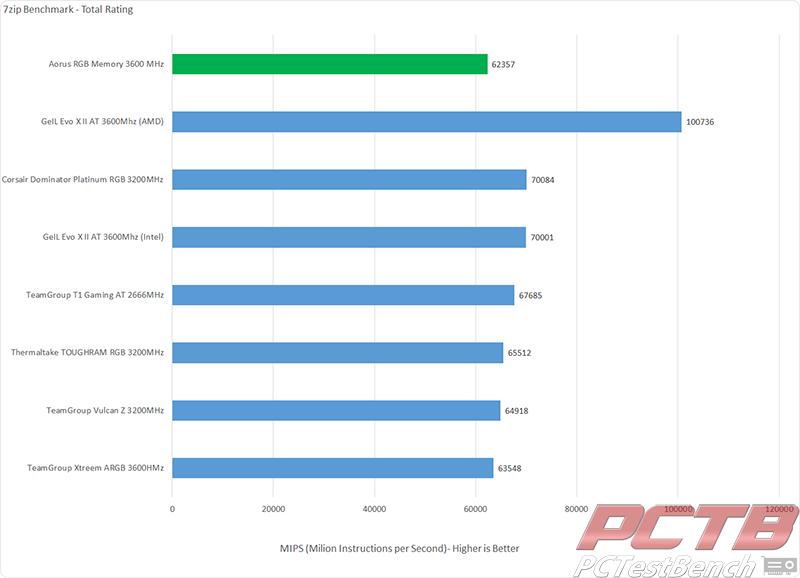

 Aorus RGB memory 7-zip

7-Zip was one of the few benchmarks we ran that the Aorus RGB Memory didn’t do all that well when compared to the other kits of memory in the charts. In fact, our Aorus RGB memory came in dead last with an overall rating of 62357 when compared to seven other kits of memory. However, this is not the norm for the Aorus RGB memory.

AIDA64 ENGINEER

AIDA64 has a set of several 64-bit benchmarks to measure how fast the computer performs various data processing tasks and mathematical calculations. Multi-threaded memory and cache benchmarks are available to analyze system RAM bandwidth and latency. Benchmark pages of AIDA64 Extreme provide several methods to measure system performance. These benchmarks are synthetic, so their results show only the theoretical maximum performance of the system. The AIDA64 suite has various benchmarks for CPU, FPU, GPU, storage, and memory testing.

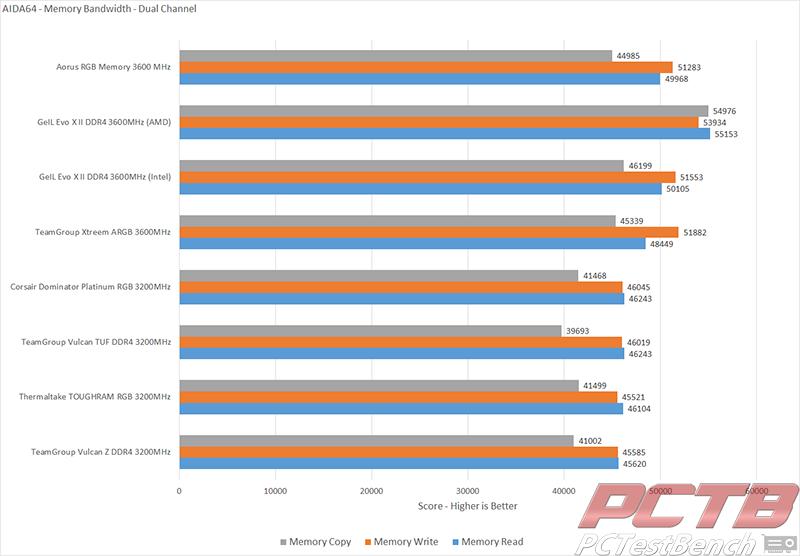

Aorus RGB memory Aida64 memory bandwidth



aorus RGB memory memory latency aida64

Performance Test 10

Performance Test 9 is a complete system benchmark that tests every main component of your system. The areas tested are the Disk, Memory, 2D Graphics, 3D Graphics, and CPU. There is also an overall PassMark Rating. However, for the Aorus RGB Memory, we’ll mainly be focusing on the memory mark test, specifically the threaded results.

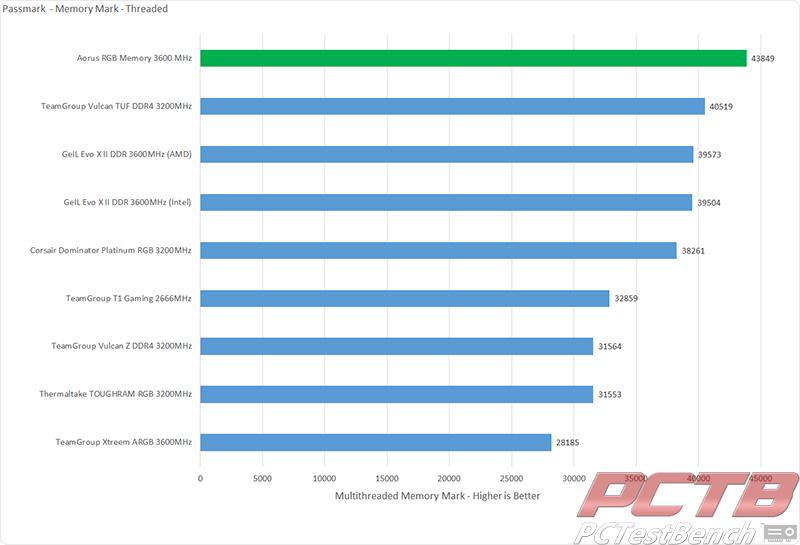

performance test 10 memory mark

For the memory mark score in Performace Test 10, the Aorus RGB Memory achieved an overall score of 3734 which is in the 97 percentile. The result we’ll be focusing on is the memory threaded score. Our Aorus RGB Memory kit achieved a threaded score of 43849. This put the Aorus RGB memory at the top of our chart, out of eight kits of memory in total.

performance test 10 memory mark

SiSoft Sandra

“SiSoftware Sandra provides a robust package of diagnostic tools for testing your system and teasing out its problems–or potential headaches.”Aorus RGB memory si soft sandra memory bandwidth

The Si Soft Sandra memory bandwidth tests give three results. These results are The Floating Point score, the Integer score, and the Aggregate score. The results are recorded in GB/s. In testing, the Aorus RGB memory came in third overall out of eight kits of memory. For the Floating-point score, our kit of Aorus RGB Memory averaged 32.62 GB/s. The Integer score was 32.47 GB/s and the Aggregate score was 32.54 GB/s.

Super Pi Modded 1.5

“On August 1995, the calculation of pi up to 4,294,960,000 decimal digits was succeeded by using a supercomputer at the University of Tokyo. The program was written by D.Takahashi in collaboration with Dr.Y.Kanada at the computer center. This record should be the current world record. (Details are shown in the windows help.) This record-breaking program was ported to personal computer environments such as Windows NT and Windows 95. In order to calculate 33.55 million digits, it takes 3 days with a Pentium 90 MHz, 40 MB main memory, and 340 MB available storage.”

aorus RGB memory Super Pi Modded

Super Pi Modded measured how long it takes your computer to calculate PI to a specific number of decimal points. For the review, we recorded the time it took our 9900k test bench to calculate Pi to 32 million decimal points. Overall, our 9900k test bench had the second-best time when the Aorus RGB Memory was on the bench. It took our test system 6 minutes and 59 seconds to calculate Pi to 32 million decimal points.
