Fractal Meshify 2 Compact Case Review

A Classic Evolved

Introduction

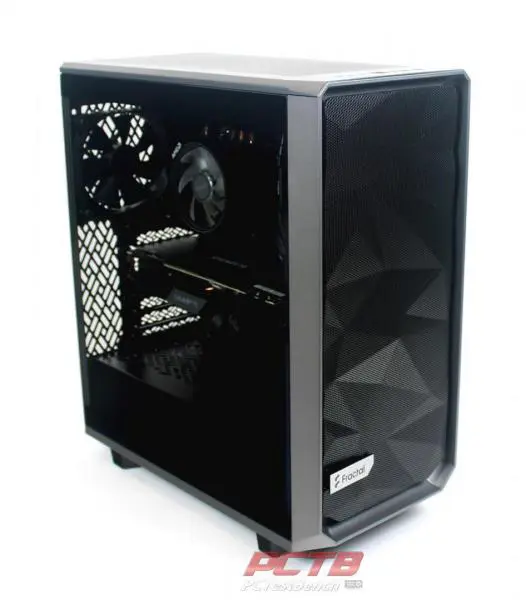

Fractal Meshify 2 Compact Case Review 1 Black, Case, Chassis, computer case, Fractal, Mesh, Meshify, Meshify 2, Meshify Compact, Mid-Tower

Fractal Meshify series of cases has been a staple for builders ever since they hit the market in 2016 with its great cooling performance and unique angular mesh front panel. Since then we have seen many additions/revisions to this line over the years and today Fractal adds another case with the Meshify 2 Compact. The Meshify 2 Compact features the same iconic angular mesh front panel as its predecessors but comes with an updated I/O front panel that includes USB Type-C, tool less side panels, full-length PSU shroud, and a fully removable top panel. The Meshify 2 Compact comes in 5 different models which include: Black Solid, Black TG Dark Tint, Black TG Light Tint, Gray TG Light Tint, and White TG Clear Tint (will be available in Q2) all at an MSRP of $109.99.

We would like to thank Fractal for sending us the Meshify 2 Compact for review.

Fractal’s Take on The Meshify 2 Compact

The Meshify 2 Compact is a performance-oriented ATX case that focuses on flexibility and space efficiency to maximize component and cooling support in a minimal space with a bold sense of style. As a direct successor to the still highly successful Meshify C that first established the series in 2016, the Meshify 2 Compact boasts one of the most extensive lists of design improvements and upgrades to be seen in a single iteration.

Features and Specifications

Notable Features:
  • Iconic angular mesh front provides filtered airflow with a bold, stealth-inspired aesthetic
  • Room for GPUs up to 360 mm with a 240 mm radiator in the top, or up to 360/280 mm front radiators with GPUs under 305 mm
  • Seamless TG panel with steel frame support and bolt-free top-latching mechanism
  • Modular chassis design with removable top panel assembly opens up to fully expose the case interior on three sides
  • Three front USB ports including one USB 3.1 Gen 2 Type-C with fast charging and speeds up to 10Gbps
  • Full-length power supply shroud with two-part removable cover
Technical Specifications:
3.5″/2.5″ drive mounts 2 (included)
Dedicated 2.5″ mounts 2 included, 4 positions total
5.25″ drive bays N/A
Expansion slots 7
Motherboard compatibility ATX / mATX / ITX
Power supply type ATX
Front interface 1x USB 3.1 Gen 2 Type-C
2x USB 3.0
Audio I/O
Power/Reset buttons
Total fan mounts 7x 120 or 4x 140 mm and 2x 120 mm
Front fan 3x 120 or 2x 140 mm (2x 140 mm fan included)
Top fan 2x 120/140 mm
Rear fan 1x 120 mm (1x 120 mm fan included)
Bottom fan 1x 120 mm (requires removal of HDD cage)
Dust filters Top, front, bottom
Front radiator Up to 360/280 mm
Top radiator Up to 240 mm
Rear radiator 120 mm
Bottom radiator 120 mm (requires removal of HDD cage)
PSU max length 200 mm w/o HDD cage
165 mm w/ HDD cage
(cages in max forward position; additional space required for front fans/radiators installed below the shroud)
GPU max length 360 mm total
341 mm w/ front fan
CPU cooler max-height 169 mm
Cable routing space 17-28 mm
Cable routing grommets Yes
Fixed Velcro straps Yes
Tool-less push-to-lock Top, front and side panels
Captive thumbscrews HDD, SSD, and PSU brackets
Case Material Steel
Left side panel Steel or tempered glass
Right side panel Steel
Case dimensions (LxWxH) 424 x 210 x 475 mm
Case dimensions w/o feet/protrusions/screws 412 x 210 x 455 mm
Net weight Solid: 7.7 kg / TG: 8.1 kg
Package dimensions (LxWxH) 552 x 320 x 554 mm
Gross weight Solid: 9.3 kg / TG: 9.8 kg

1 2 3 4Next page
