As a leading brand in the enthusiast graphics market, Gainward proudly presents the new Phoenix series for NVIDIA GeForce RTX 30 Series – Gainward GeForce RTX 3090 Phoenix and Gainward GeForce RTX 3080 Phoenix and overclocked “Golden Sample” versions of each.
These new Phoenix GeForce RTX 30 Series are powered by the NVIDIA Ampere architecture with 2nd gen Ray Tracing cores, 3rd gen Tensor cores, and new streaming multiprocessors, bringing stunning visuals, amazingly fast frame rates, and AI acceleration to games and creative applications. It brings you up to 1.9X performance-per-watt over the previous generation.

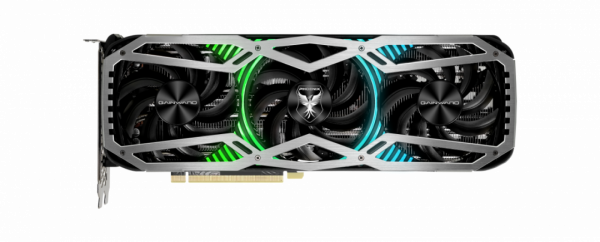

Gainward GeForce RTX 3090 Phoenix series and Gainward GeForce RTX 3080 Phoenix series come with the new Phoenix cooler design. ARGB lighting can be adjusted by the latest ExperTool II utility with lighting effects.

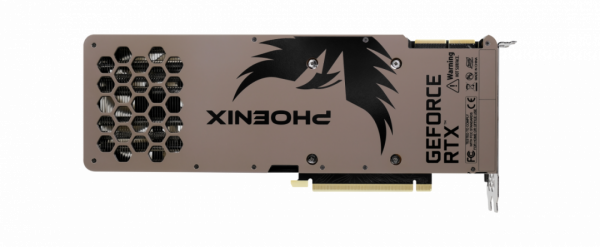

With a brand new cooler, gamers can enjoy minimal noise even under heavy gaming sessions. A “Zero RPM” feature keeps the card completely silent when not heavily loaded. A protective double-side die-cast design comprised of a frame around the front and a full cover back plate gives users piece-of-mind.

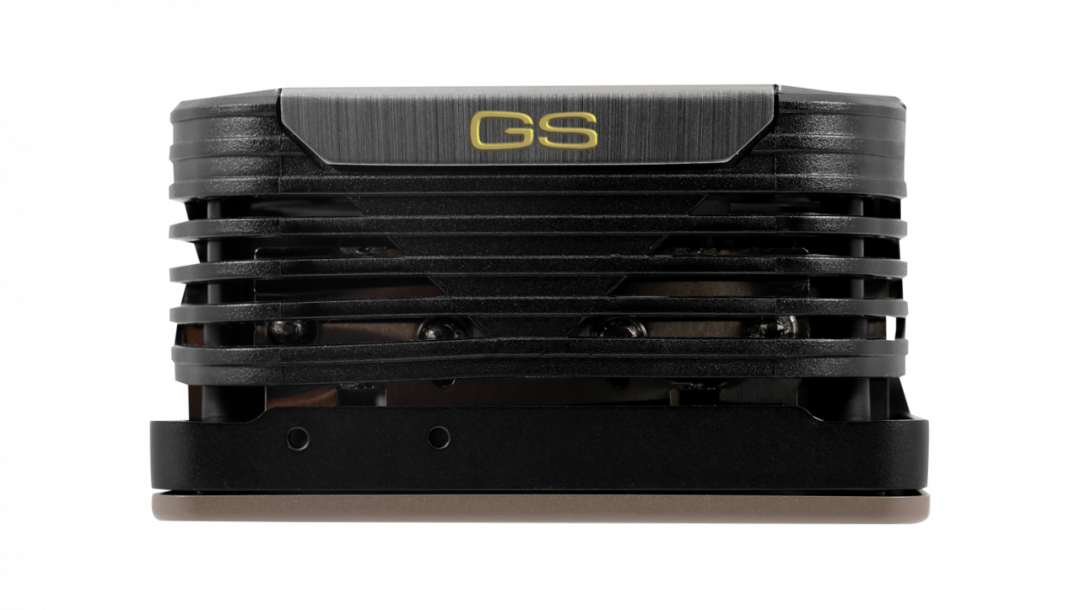

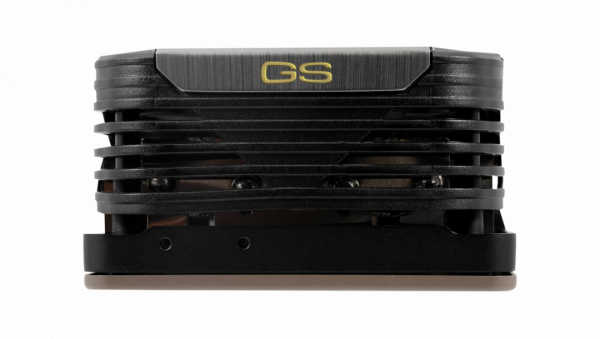

Both Gainward GeForce RTX 3090 Phoenix and Gainward GeForce RTX 3080 Phoenix come in factory over-clocked versions – the GAINWARD “Golden Sample”. It brings extra frame rates for the most demanding gaming enthusiasts. Users will experience a whole new class of performance-enhanced 4K gaming with it. The latest HDMI 2.1 provides users the ability to drive up to 8K monitors with a single cable.
- NVIDIA Ampere architecture
- GDDR6X on board memory
- 2nd Gen Ray Tracing Cores
- 3rd Gen Tensor Cores
- NVIDIA GeForce Experience
- Microsoft DirectX 12 Ultimate
- Vulkan RT API, OpenGL 4.6
- NVIDIA DLSS
- NVIDIA GPU Boost
- NVIDIA NVLink (NVIDIA SLI) (for GeForce RTX 3090 series)
- NVIDIA Ansel technology
- NVIDIA G-SYNC
- VR Ready
- PCI Express 4.0
GAINWARD GeForce RTX 3090 / RTX 3080 Phoenix Series
|Product Name||GAINWARD |
|GPU Chip||NVIDIA® GeForce RTX 3090||NVIDIA® GeForce RTX 3080|
|Core Clock (Boost)||1725MHz||1695MHz||1740MHz||1710MHz|
|Memory Clock||9,750 MHz (19.5Gbps)||9,500 MHz (19Gbps)|
|24 GB, 384 bits, 936 GB/sec||10 GB, 320 bits, 760 GB/sec|
|Maximum TGP||350 watts||320 watts|

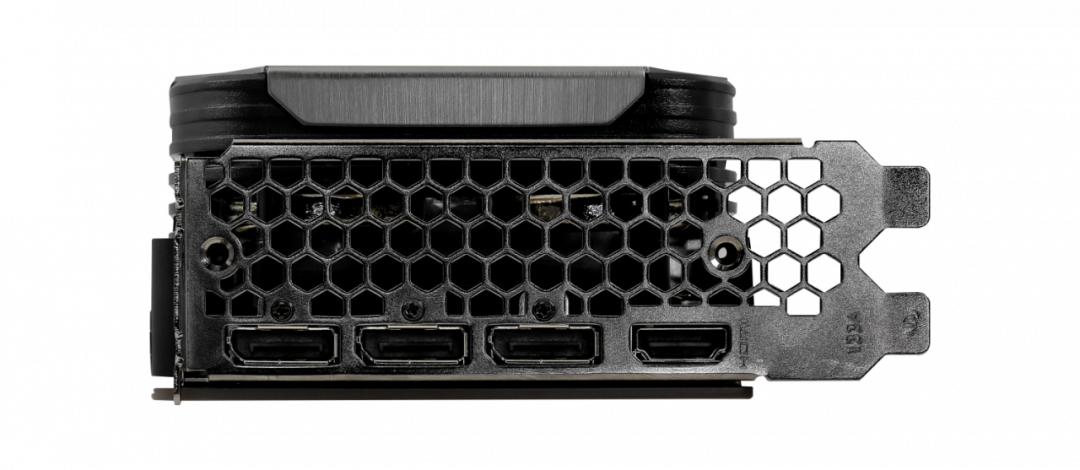

|Output Ports||3 * DisplayPort (1.4a), HDMI (2.1)|
|Cooler||New Phoenix fan, 2.7 slot|
|External Power Connector||8-pin *2|
|Bus Interface||PCI-Express 4.0|
