Fractal Design ERA ITX Chassis Review

Era is a unique and elegantly understated feat of both design and technical engineering



Fractal Design is well respected in the PC community for making elegant and innovative computer cases and the new Era ITX is a unique leap forward. Almost 2 years ago, Fractal deviated from the traditional square box slightly with the angular designs on the Meshify. Fractal’s Era ITX takes this even further with uniquely sculpted curves on all sides. Even if the case is mostly closed in, your options certainly aren’t. The Era can be user configured for air or water cooling, aesthetics or airflow, SFX, or ATX power supplies and you can even change around your storage options. You get five options for colors, Silver with White Oak top, Titanium Grey with Walnut, or Carbon Black, Gold or Cobalt Blue with tempered glass. No matter what your flavor is, as long as it’s ITX based, the ERA can handle it. Today we’ll be taking a look at the stunning Cobalt Blue model.


Fractal Design ERA ITX Chassis Review 1 Blue, Case, ERA, Fractal, ITX, Mini-ITX, SFF, SFX


We would like to thank Fractal for not only sending the ERA ITX over for us to check out but allowing us to pick our favorite color. It’s not that we don’t admire the silver, titanium, carbon, or gold versions, but when was the last time you’ve seen such a beautiful blue?


Fractal’s take on the ERA:

Era is a unique and elegantly understated feat of both design and technical engineering—a compact chassis free from the excessive restrictions traditionally associated with small form factor systems.

Wrapped in aluminum and offering a variety of top inserts ranging from premium wood to tempered glass, Era blends into any environment. Despite a modest 16-liter footprint, it readily accommodates dual-slot GPUs, AIO water cooling units up to 240 mm, high-end processors, and up to four storage devices.

Compact, sophisticated, and stylish, Era redefines the small form factor for those looking to make a design statement without sacrificing the power and functionality of professional-grade hardware.

Fractal Design ERA ITX Chassis Review 2 Blue, Case, ERA, Fractal, ITX, Mini-ITX, SFF, SFX

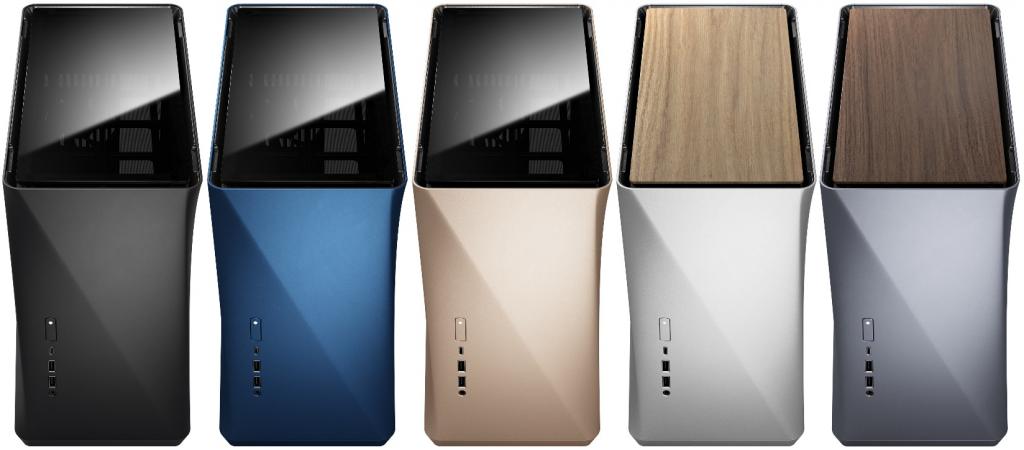

Color Options include Black / Tempered Glass, Cobalt / Tempered Glass, Gold / Tempered Glass, Silver / White Oak and Titanium Grey / Walnut.

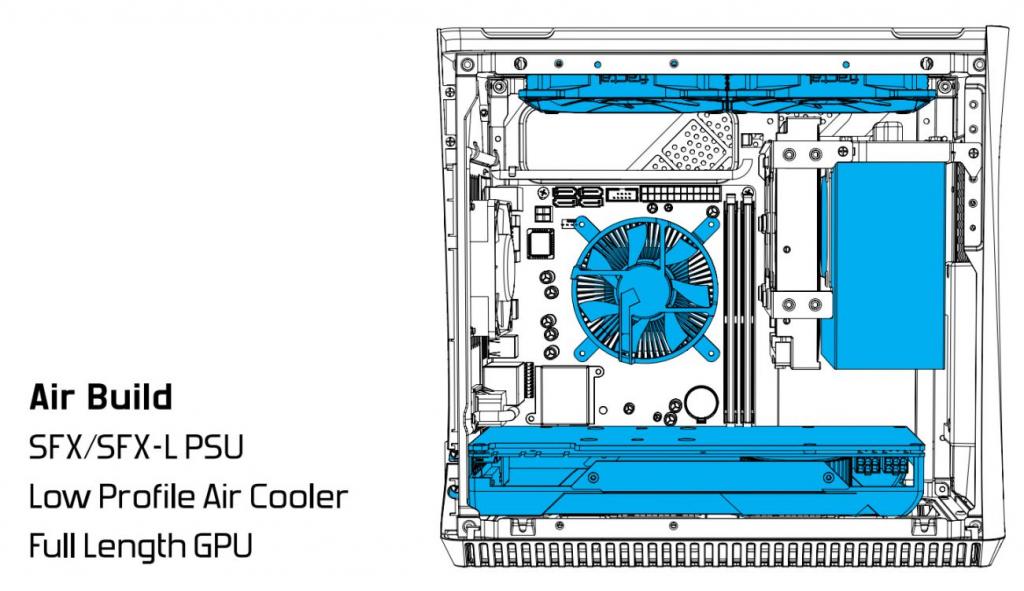

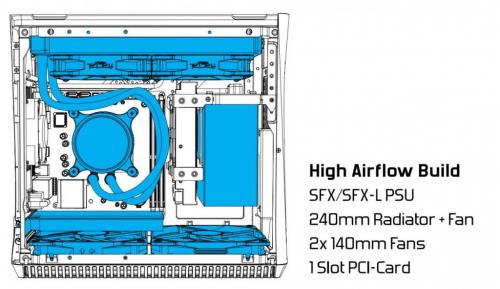

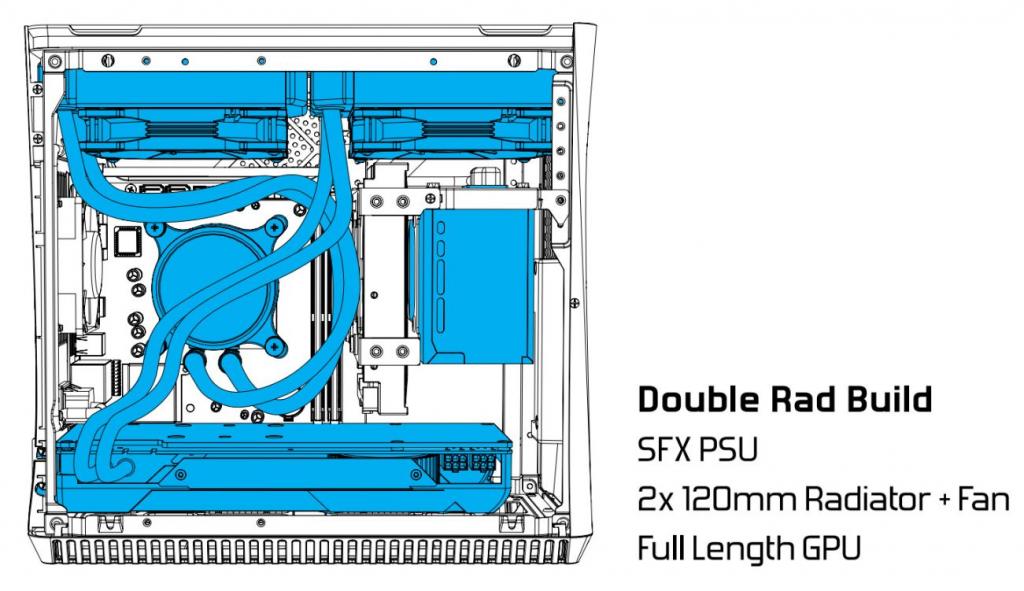

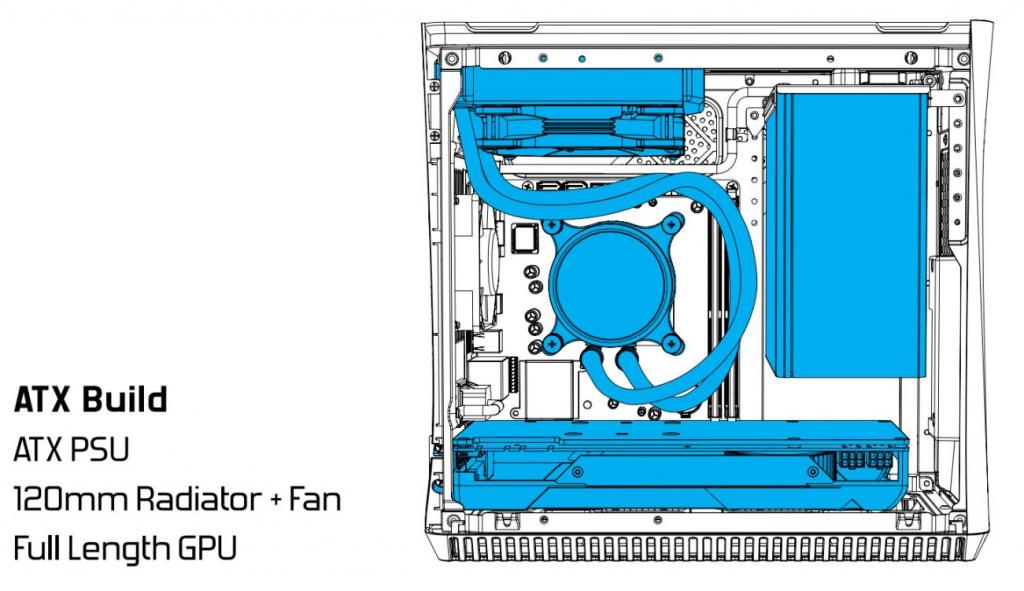

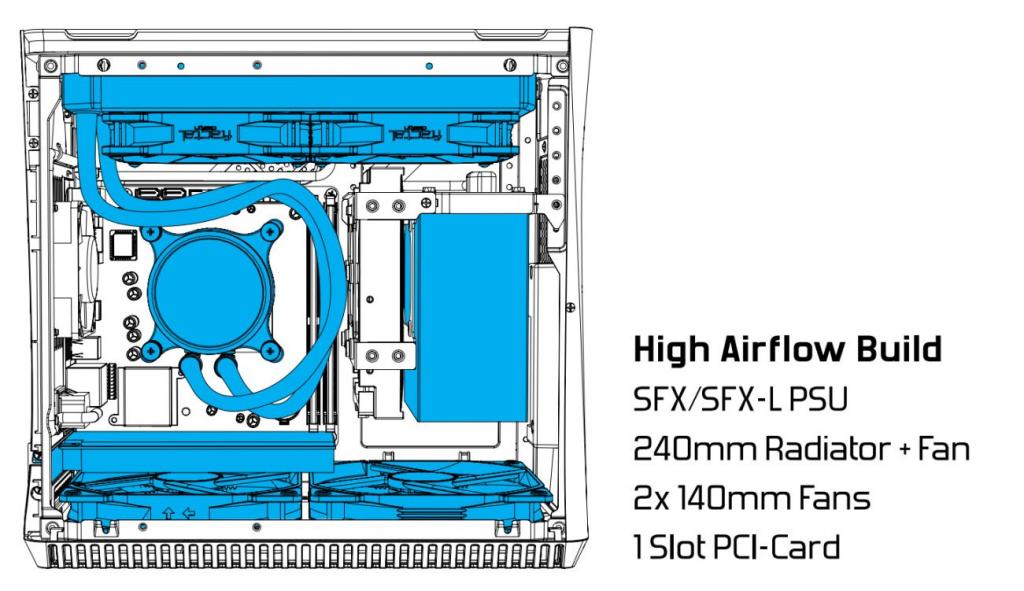

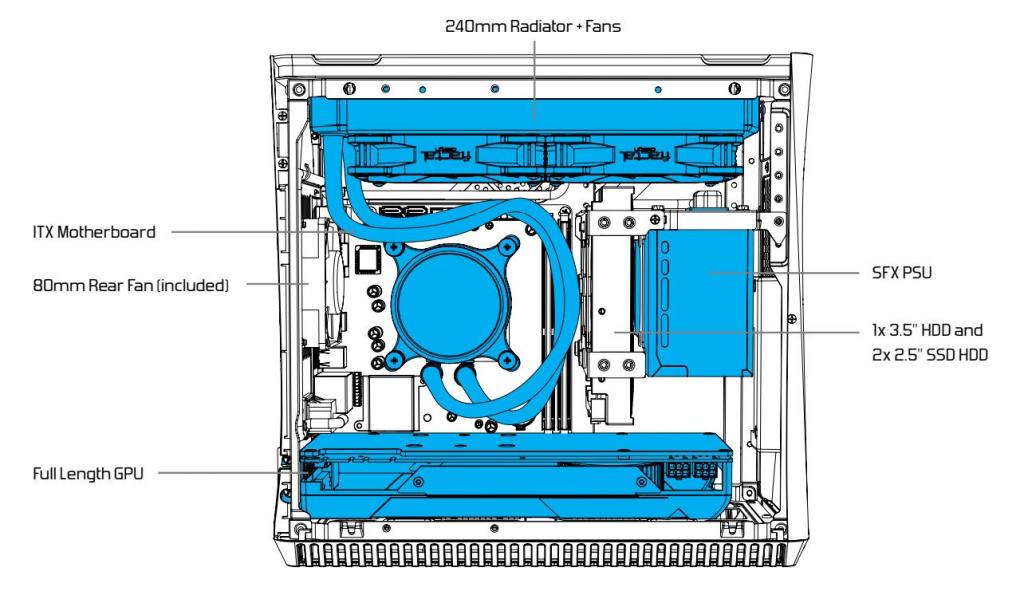

Layout Examples:

Key Features:

  • Compact, uniquely designed aluminum exterior available in five colors
  • Versatile interior supporting professional-grade hardware
  • Stylish top panel designed to match the color of your case.
  • Additional steel mesh top panel included for higher airflow
  • Small, flexible, and space-efficient with volume just over 16 liters
  • Supports Dual Slot graphics cards up to 295 mm in length
  • Excellent water-cooling support via removable radiator bracket allowing 240 mm or dual 120 mm radiators
  • Two storage brackets, each capable of mounting a single 3.5” HDD or two 2.5” SSDs
  • Efficient chimney design optimizes airflow across five total fan positions
  • Pre-installed 80 mm Fractal Design SSR3 fan exhausts heat silently and effectively
  • Install SFX or ATX PSUs up to 200 mm in length with innovative adjustable brackets that maximize flexibility
  • Magnetic top panel and tool-less latching side panels allow easy access
  • Easy-to-clean, high airflow nylon filters on the top, sides, and base
  • USB 3.1 Gen 2 Type-C with support for fast charging and speeds up to 10Gbps


Quick Specs:

  • Motherboard compatibility
    • ITX
  • Power supply type
    • ATX
    • SFX-L
    • SFX
  • Cooling Support
    • Air
      • Top – 2x 120mm
      • Bottom – 2x 120/140mm (without dual-slot GPU Installed)
      • Rear – 1x 80mm
    • Water
      • Top – 120/240mm radiator
        • Max Thickness 67mm with fans (up to 42mm thick rad with standard 25mm thick fans)
      • PSU max length
        • 200 mm
      • GPU max length
        • 295 mm or 210/190 mm (with low-mounted SFX/ATX PSU)
      • CPU cooler max-height
        • 120 mm (70 mm recommended with side-mounted 3.5” HDD)
      • Case dimensions (L x W x H)
        • 325 x 166 x 310 mm
      • Volume
        • 16L
      • Expansion Slots
        • 2
      • 5” Drive Support
        • Up to 2
      • 5” Drive Support
        • Up to 4
      • 25” Drive Support
        • Not Supported
